Twilight Zone EXplorer (TZEX)
The movement of carbon through the ocean twilight zone plays a major role in regulating the Earth’s climate—yet scientists don’t yet understand exactly how this cycle works.

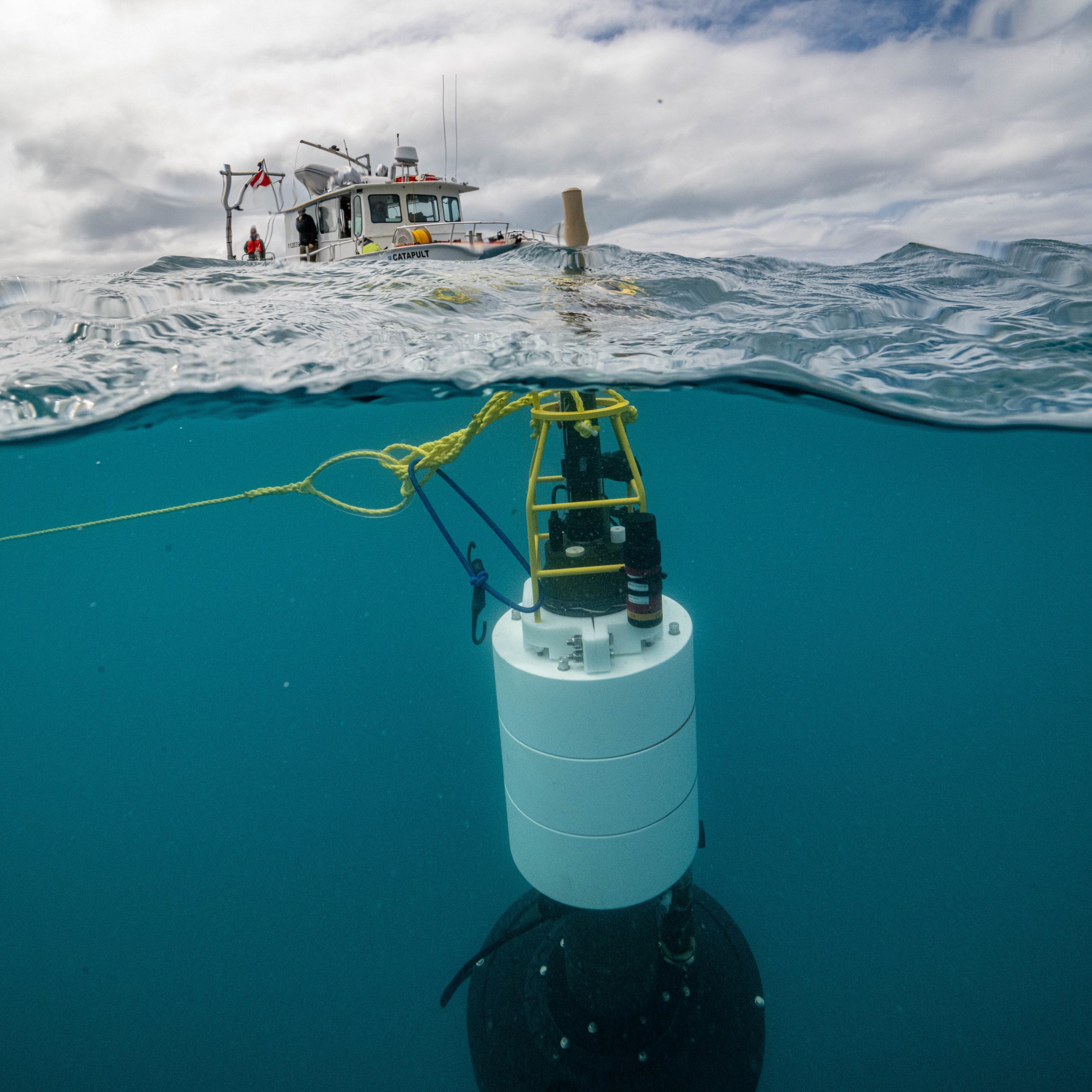

In order to figure out how much carbon the twilight zone removes from the atmosphere, the OTZ team has designed a new submersible system called the Twilight Zone EXplorer, or TZEX. The system is built on an existing French profiling float, a type of submersible instrument that can change its buoyancy at will. By inflating and deflating an onboard oil bladder, It can sink into deep water, stay there for a fixed time, and then rise back up again.
Using a set of high-resolution cameras, TZEX will record the movement of carbon-rich debris called "marine snow" as it sinks through the twilight zone. In doing so, it will give researchers new insight into the movement of organic carbon through the zone, helping them figure out the exact impact it has on global climate.
Frame: A carbon fiber frame contains all of the instruments aboard the float, and aids in deployment and recovery.
Strobe and Radio antennaStrobe and Radio antenna: provides instrument remotely. visual and radio direction-finding cues that help crews recover TZEx.
Collection tubesCollection tubes: These hollow cylinders guide marine snow into collection cups below.
Syntactic FoamSyntactic Foam: A dense foam made of hollow ceramic spheres that provide buoyancy needed to keep TZEx upright.

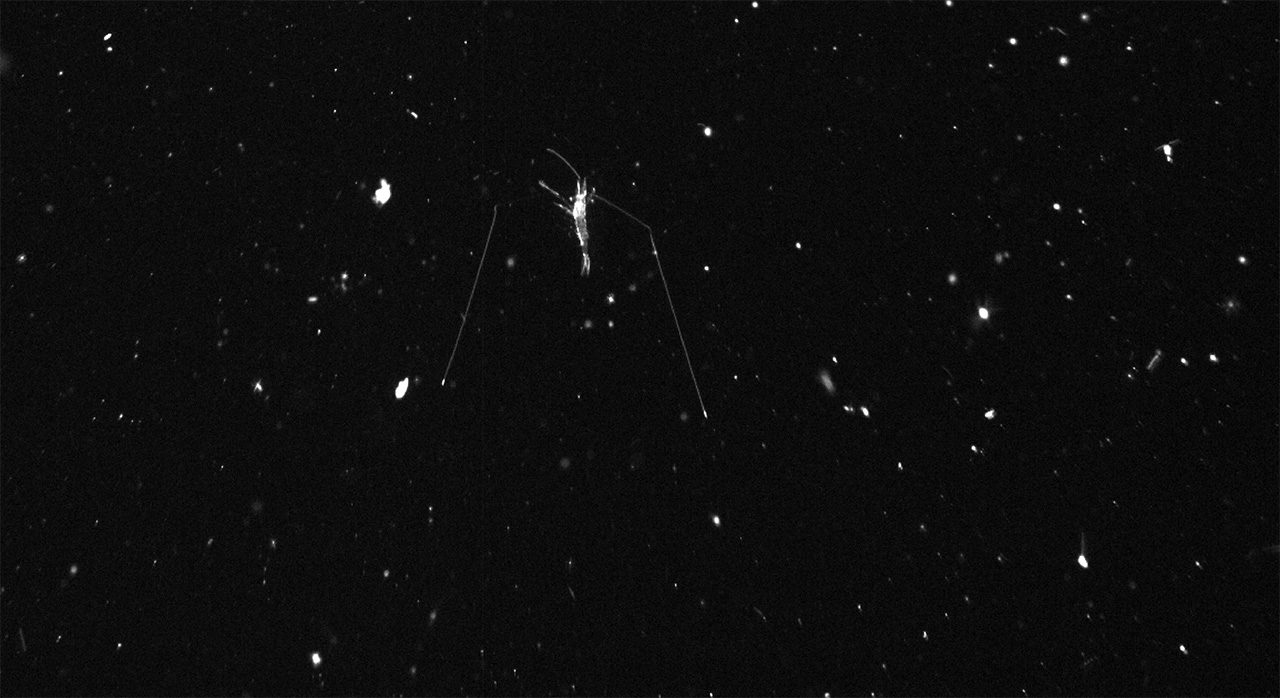

Underwater Vision ProfilerUnderwater Vision Profiler: This onboard camera and strobe light let TZEx measure the abundance and size of marine snow particles as they fall through its field of view.
Iridium AntennaIridium Antenna: When TZEx returns to the surface, this satellite antenna provides its precise location and lets scientists reprogram the instrument remotely.
CarouselCarousel: A rotating section containing twelve sample cups. As TZEx moves from one depth to another, the carousel can rotate to reveal fresh cups, letting the instrument capture multiple samples in a single deployment.
Sample CupsSample Cups (obscured): Each sample cup collects marine snow as it falls through the collection tubes above.
Argo-style floatArgo-style float: The heart of TZEx. This cylinder houses batteries, an electronic control system, and an adjustable oil-filled bladder that controls its depth.

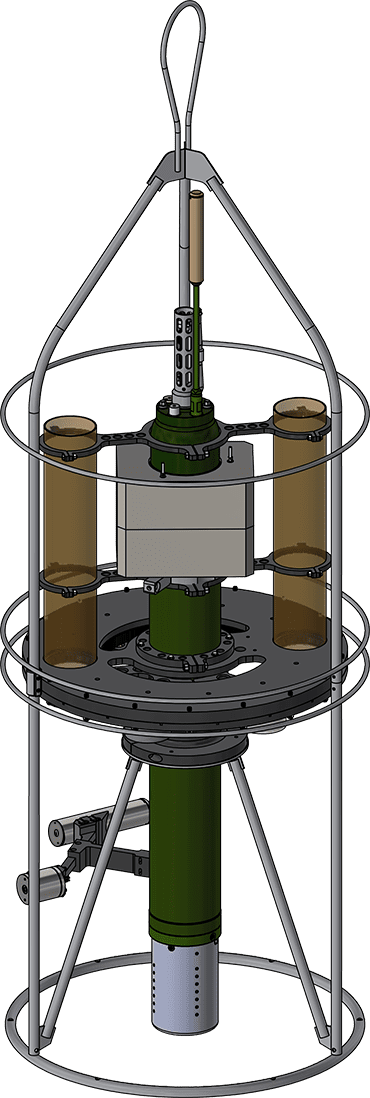

A CAD representation of the TZEx. While submerged, the device records marine snow abundance and size, captures sinking particles, and preserves their contents for further study at the surface. (Drawing by Kaitlyn Tradd, © Woods Hole Oceanographic Institution)
SPECIFICATIONS
| Depth capability | 2,000 meters |
| Dimensions | Height: 2.2 meters (7.2 feet) Width: .55 meters (1.8 feet) |
| Weight | 68 kilograms (150 pounds) |
| Energy | high power lithium batteries power the float (and the float powers the sampler) |
| Endurance | depending on depth, number of samples, etc. - ~30 days? This is something we are still figuring out! |
| # of Samples | 8 sets of duplicate, discrete samples of sinking particulate, "marine snow" |
| Sensors | CTD, Underwater Vision Profiler (UVP6) strobe and camera system for capturing images of particles, two-way IRIDIUM communication for location services and remote commands |
