Proteomics Reveals Ocean’s Inner Workings

For decades, doctors have sought methods to diagnose how different types of cells and systems in the body are functioning. Now scientists have adapted an emerging biomedical technique to study the vast body of the ocean.

In a study published Sept. 5 in the journal Science, a research team led by Woods Hole Oceanographic Institution (WHOI) demonstrated that they can identify and measure proteins in the ocean, revealing how singled-celled marine organisms and ocean ecosystems are operating.

“Proteins are the molecules that catalyze the biochemical reactions happening in the organisms,” said WHOI biogeochemist Mak Saito, the study’s lead author. “So instead of just measuring what species are where in the ocean, now we can effectively look inside those organisms and see what biochemical reactions they are performing in the face of various ocean conditions. It’s a potentially powerful tool we can use to reveal the inner biochemical workings of organisms within ocean ecosystems and to start diagnosing how the oceans are responding to pollution, climate change, and other shifts.”

The emerging biomedical technique of measuring proteins—a field called proteomics—builds upon the more familiar field of genomics, which has allowed scientists to detect and identify genes in cells. The new study is an initial demonstration that proteomic techniques can be applied to marine environments to not only identify the presence of proteins, but for the first time, to precisely count their numbers.

“We’re leveraging that biomedical technology and translating it for use in the oceans,” Saito said. “The oceans are huge, and the issues that confront them have important impacts on society. Just the way you’d analyze proteins in a blood test to get information on what’s happening inside your body, proteomics gives us a new way to begin to learn what’s happening in ocean ecosystems, especially under multiple stresses and over large regions. With that information, we can identify changes, assess their impacts on society, and devise more effective strategies to adapt.”

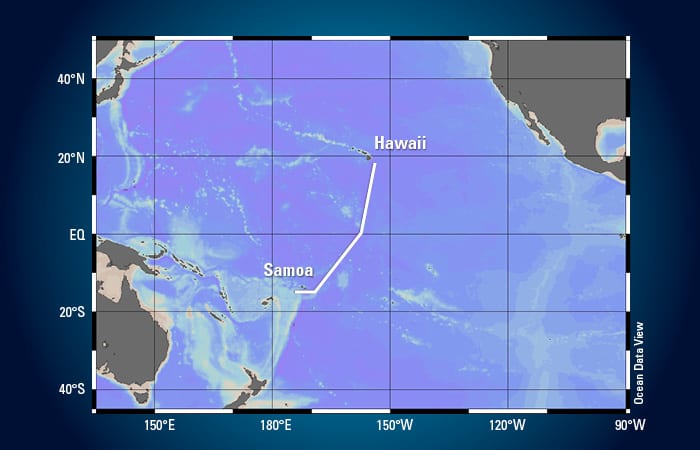

For their study, funded by the Gordon and Betty Moore Foundation and the National Science Foundation, the scientists collected water samples during a research cruise in October 2011 along a 2,500-mile stretch in the Pacific Ocean, from Hawaii to Samoa. The transect cut across regions with widely different concentrations of nutrients, from areas rich in iron to the north to areas near the equator that are rich in phosphorus and nitrogen but devoid of iron.

Back in the lab, the scientists analyzed the samples, focusing on proteins produced by one of the ocean’s most abundant microbes, Prochlorococcus. They used mass spectrometers at WHOI to separate out individual proteins in the samples, identifying them by their peptide sequences. In subsequent steps, the scientists demonstrated for the first time that they could precisely measure the amounts of individual proteins from individual species at various locations in the ocean.

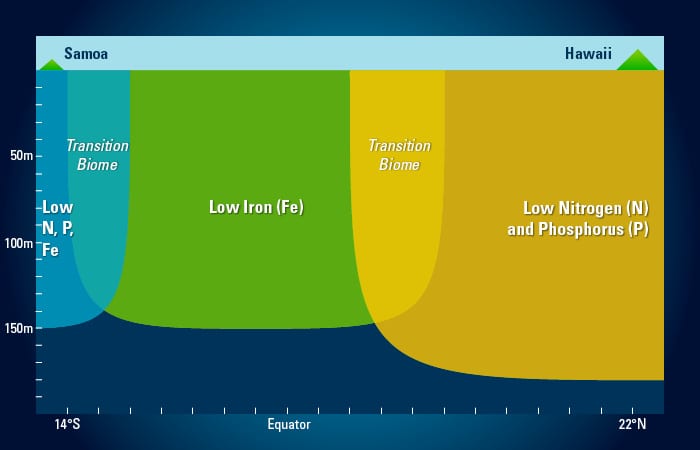

The results painted a picture of what factors were controlling microbial photosynthesis and growth and how the microbes were responding to different conditions over a large geographic region of the ocean. For example, in regions where nitrogen was limited, the scientists found high levels of a protein that transports urea, a form of nitrogen, which the microbes used to maximize their ability to obtain the essential nutrient. In areas where iron was deficient, they found an abundance of proteins that help grab and transport scarce iron.

“The microbes have biochemical systems that are ready to turn on to deal with low-nutrient situations,” Saito said. In areas in between, where the microbes were starved for both nutrients simultaneously, proteins detected by the scientists indicated which biochemical machinery the microbes used to most efficiently negotiate multiple environmental stresses. The protein measurements enabled scientists to map when, where, and how ecosystem changes occurred over broad areas of the ocean.

“In our study, we measured about 20 of these biomarkers that indicate metabolism occurring in the ocean, but we can readily scale up that capacity to measure many more simultaneously,” Saito said. “Here at Woods Hole Oceanographic, we’re building an oceanic proteomic capability, which includes sampling with ocean-going robots, to allow us to diagnose the inner workings of ocean ecosystems and understand how they respond to global changes.”

Along with Saito, the research team included Matthew McIlvin, Dawn Moran, Tyler Goepfert, and Carl Lamborg at WHOI, Giacomo DiTullio at the College of Charleston in South Carolina, and Anton Post at the Marine Biological Laboratory in Woods Hole.
