Winches |
|
|
The Mooring & Rigging Group has four TSE winches and one
Lebus double barrel capstan winch available for loan. Three of the TSE winches (TSE I, III
and IV) are essentially the same, while TSE II has been modified and
therefore, its specifications are slightly different. Rick Trask
is responsible for assigning winches based on their availability and
other loan commitments. It is best to request winch use as early
as possible since demand is high.
TSE-I SPECIFICATIONS
DIMENSIONS AND WEIGHTS
Length: 98
in.
Width: 78.5
in.
Height w/o reel: 55 in.
Weight with reel: 7,000 lbs.
MAXIMUM REEL
Core diameter: 24 in.
Outside reel diameter: 58 in.
Overall width: 44 in.
Distance between flanges: 32 ½ in.
Maximum reel weight: 6,000 lbs.
POWER
Type: Electric Motor, 30HP,
1800 rpm
Power Supply: 3/60/460
V/AC
HYDRAULIC SYSTEM
Hydraulic Fluid Capacity: 30 gallon (U.S.)
Motor: Axial
Piston, Fixed Displac.
Pump: Axial
Piston, Variable Displac.
PERFORMANCE
Continuous Torque: 84,000 lb-in.
Continuous Line Pull (24”
dia.): 7,000 lbs.
Maximum Torque: 90,000 lb-in.
Maximum Line Pull (48”
dia.): 7,500 lbs.
Maximum Drum Speed: 16 rpm (no load)
SHIPPING WEIGHT: 7,000 lbs.
DECLARATION VALUE: $69,000
TSE II SPECIFICATIONS
DIMENSIONS AND WEIGHTS
Length: 114 in.
Width: 88 in.
Height Without Reel: 72 in.
Weight: 7,050 lbs.
MAXIMUM REEL
Core Diameter: 24 in.
Outside Reel Diameter: 58 in.
Overall Width: 44 in.
Distance between Flanges: 30 in.
Maximum Reel Weight: 6,000
lbs.
POWER
Type: Electric Motor 30 H.P., 1,800 RPM
Power
Supply: 3/60/460/230 V/AC
HYDRAULIC SYSTEM
Hydraulic Fluid Capacity: 30
gallon (U.S.)
Motor: Axial Piston,
Fixed Displace
Pump: Axial Piston,
Variable Displace
PERFORMANCE
Continuous Torque: 84,000
lbs. - Ins.
Continuous Linepull (24”
Dia.): 7,000 lbs.
Maximum Torque: 90,000 lbs.
Maximum Linepull (48” Dia.):
7,500 lbs.
Maximum Linespeed: 16 RPM
SHIPPING WEIGHT: 7,050 lbs.
DECLARATION VALUE: $69,000

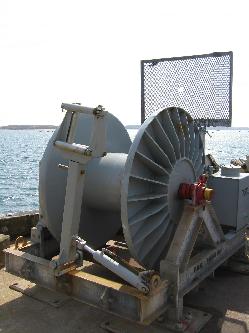

DIMENSIONS AND WEIGHTS
Length: 113
in. plus 15 in. w/ operator platform down
Width: 82
in.
Height w/ reel: 73 in. with screen
down, 101 in. w/ screen up
Weight with reel: 6,700 lbs.
MAXIMUM REEL
Core diameter: 20 in.
Outside reel diameter: 60 in.
Distance between flanges: 40 in.
Maximum reel weight: 6,000 lbs.
POWER
Type: Electric
Motor, 30HP, (460/3/60 V/AC)
HYDRAULIC SYSTEM
Motor: Axial
Piston, Fixed Displac.
Pump: Axial
Piston, Variable Displac.
PERFORMANCE
Continuous Torque: 84,000 lb-in
Continuous Line Pull (24 in.
dia.): 7,000 lbs.
Maximum Torque: 90,000 lb-in
Maximum Line Pull (48 in.
dia.): 7,500 lbs.
Maximum Drum Speed: 16 rpm (no load)
SHIPPING WEIGHT: 6,700 lbs.
DECLARATION VALUE: $69,000
TSE-IV SPECIFICATIONS
DIMENSIONS AND WEIGHTS
Length: 113
in.
Width: 82
in.
Height w/ reel: 73 in. w/ screen
down, 101 in. w/ screen up
Weight with reel: 6,700
MAXIMUM REEL
Core diameter: 20 in.
Outside reel diameter: 60 in.
Distance between flanges: 40 in.
Maximum reel weight: 6,000 lbs.
POWER
Type: Electric
Motor, 30HP, (460/3/60 V/AC)
HYDRAULIC SYSTEM
Motor: Axial
Piston, Fixed Displac.
Pump: Axial
Piston, Variable Displac.
PERFORMANCE
Continuous Torque: 84,000 lb-in.
Continuous Line Pull (24”
dia.):7,000 lbs.
Maximum Torque: 90,000 lb-in.
Maximum Line Pull (48”
dia.): 7,500 lbs.
Maximum Drum Speed: 16 rpm (no load)
SHIPPING WEIGHT: 6,700 lbs.
DECLARATION VALUE: $69,000
LEBUS WINCHLIFTING CAPACITY: 5,600 lbs.; tested to 7,000 lbs. (125% of working capacity)
SHIPPING WEIGHTS AND DIMENSIONS
Take Up Reel Frame: 94"W x 75"L x 49"H Weight: 1,470 lbs.
Capstan Unit: 66"W x 62"L x 66"H Weight: 5,260 lbs.
Power Pack: 61"W x 77"L x 88"H w/ storage box of hoses, w/o box, 61" H
Weight: 5,254 lbs.
Hydraulic Hoses and Spare Parts: 48"L x 48"W x 31"H Weight: 810 lbs.
Power Requirements: 440 volt, 3 phase, Fused 120 amp.
|
|
Mooring Operations, Engineering & Field Support Group
