Deck Layout

  Email    Print  PDF  Change text to small (default) Change text to medium Change text to large

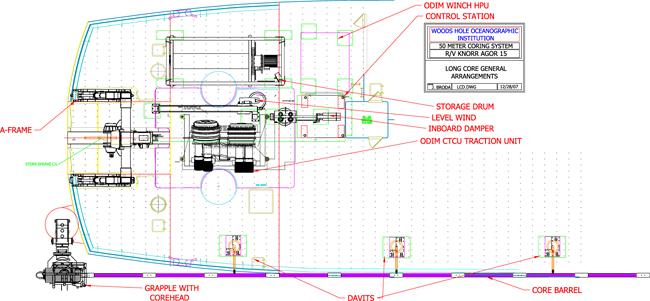

Aerial CAD view of the position of major components of the Long Coring system on the deck of the R/V Knorr.  Note that the array of equipment is not comprehensive.  Note also that the core length and davit positions were modified for the sake of clarity of the image and are not dimensionally correct.
