Observing the Oceans

  • 000 OOI_intro_GoPro_Armstrong_Paul_Matthias.jpg

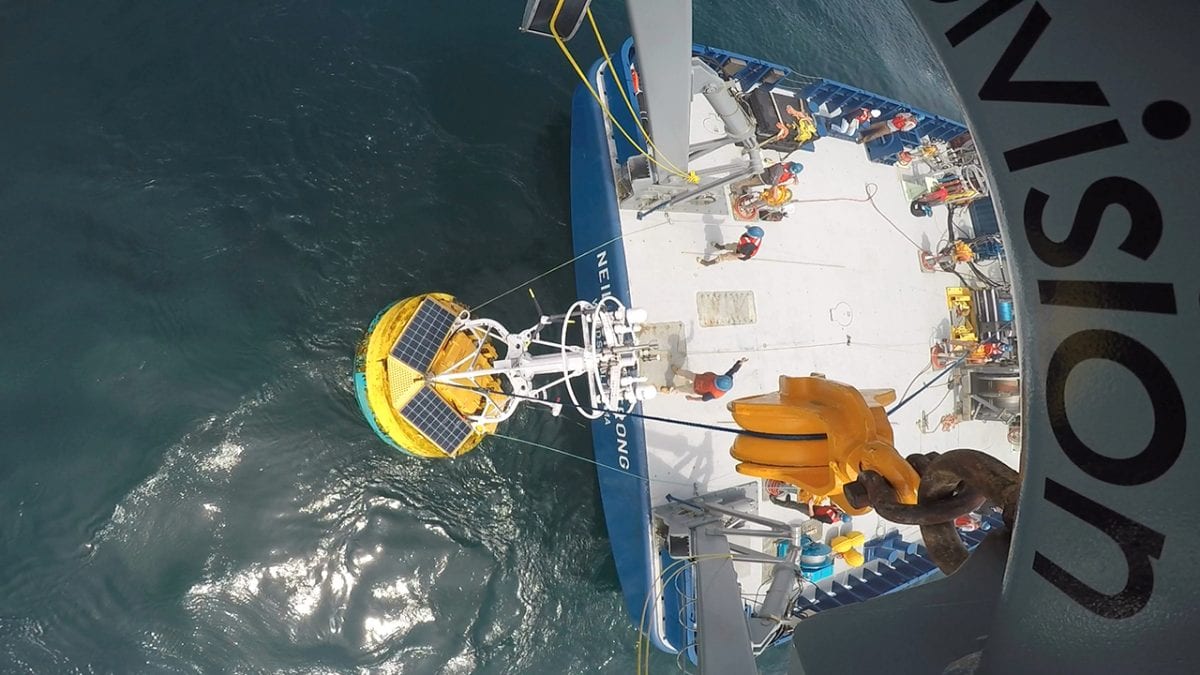

    The Ocean Observatories Initiative is moving full speed ahead at Woods Hole Oceanographic Institution. This unprecedented ocean science project is streaming a wealth of marine data straight from the ocean to the World Wide Web, making it free for anyone to use. In the image above, an OOI coastal surface buoy is recovered from the ocean and hoisted onto the fantail of the research vessel Neil Armstrong. (Photo by Paul Matthias, Woods Hole Oceanographic Institution)
  • 001 OOI_surface_buoy_Armstrong_N803568_2016-05-25_Ken_Kostel.jpg

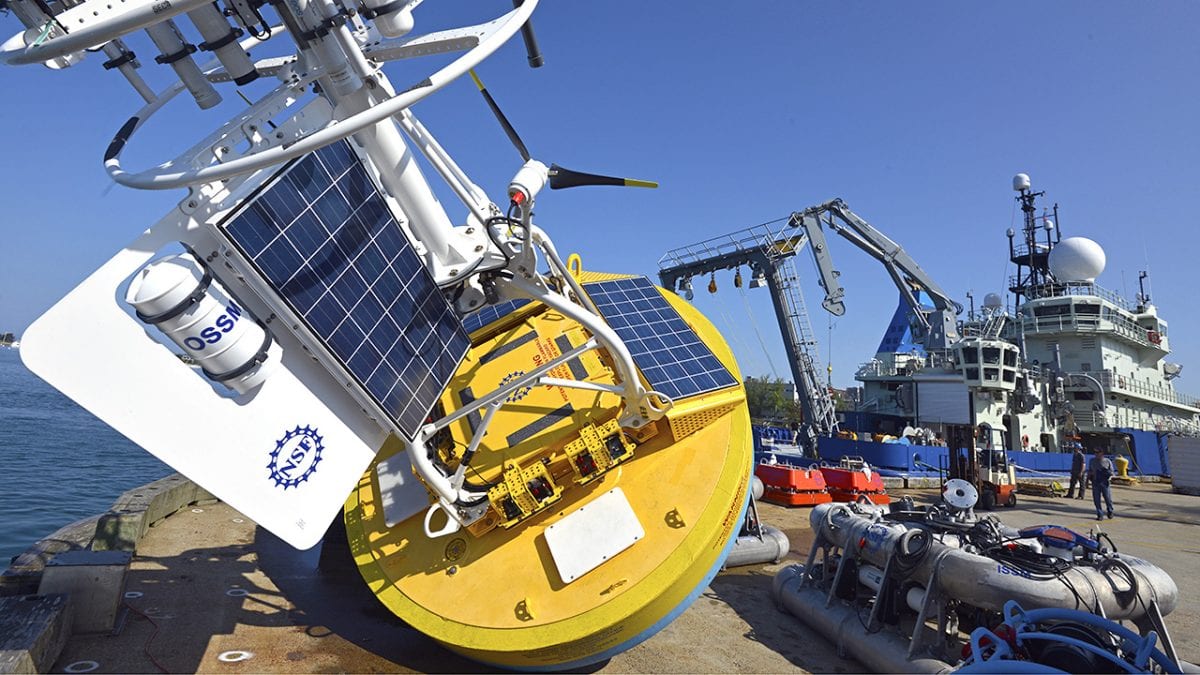

    Moorings, some with large blue-and-yellow surface buoys, serve as platforms for scientific instruments and are a key component of the OOI’s arrays. Instruments are attached to the surface buoy to observe the marine atmosphere, and to the anchor frame and interconnecting cable to make measurements of the physical, chemical, and biological properties of the ocean. Unlike sampling devices and sensors deployed from ships, the instruments on a mooring operate all day, every day, transmitting data to shore in near-real time. And unlike orbiting, satellite-based sensors, which cannot penetrate much beneath the ocean’s surface, moored instruments capture measurements from the surface all the way down to the ocean floor. (Photo by Ken Kostel, Woods Hole Oceanographic Institution)
  • 002 OOI_map_all_arrays_2016-07-26_WHOI.jpg

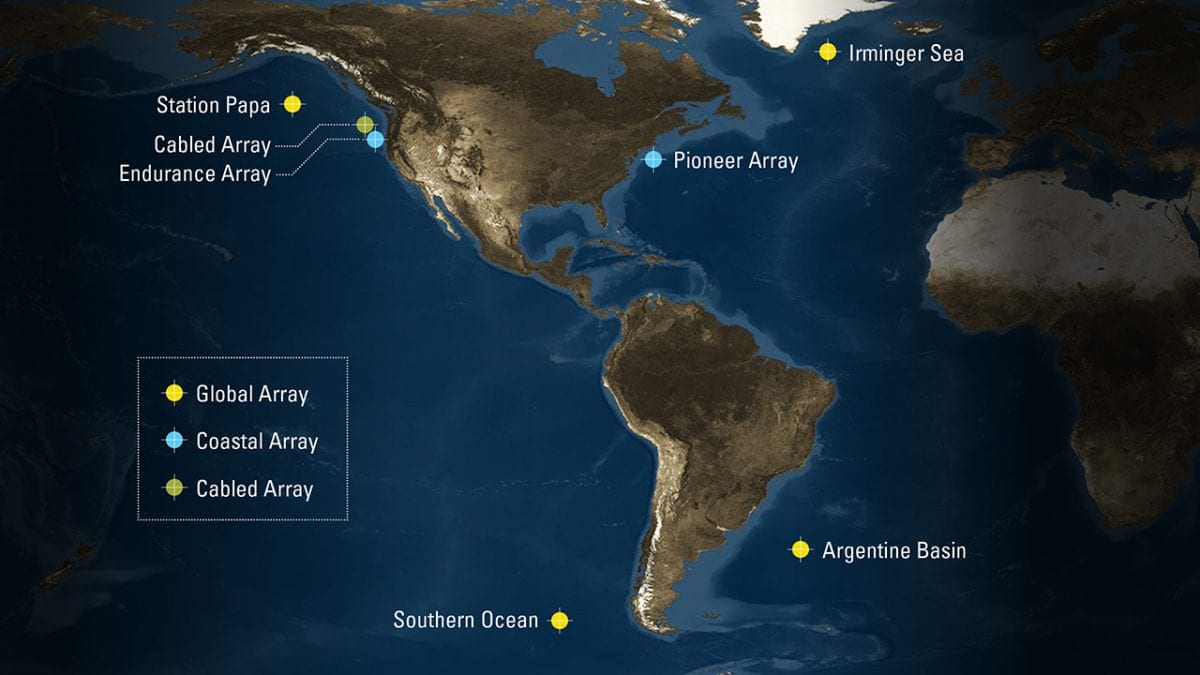

    The OOI includes four high-latitude Global Arrays near Alaska, Argentina, Chile, and Greenland; two Coastal Arrays—one off New England, the other off the Pacific Northwest; and a Cabled Array running to the Oregon coast from an active submarine volcano about 300 miles offshore. WHOI designed, built, and operates five of the seven arrays: the four Global Arrays and the Coastal Pioneer Array. (Illustration by Jack Cook and Eric Taylor, WHOI Graphic Services)
  • 003 OOI_Argentine_Basin_wave_2015-11-23_Mitch-Elend.jpg

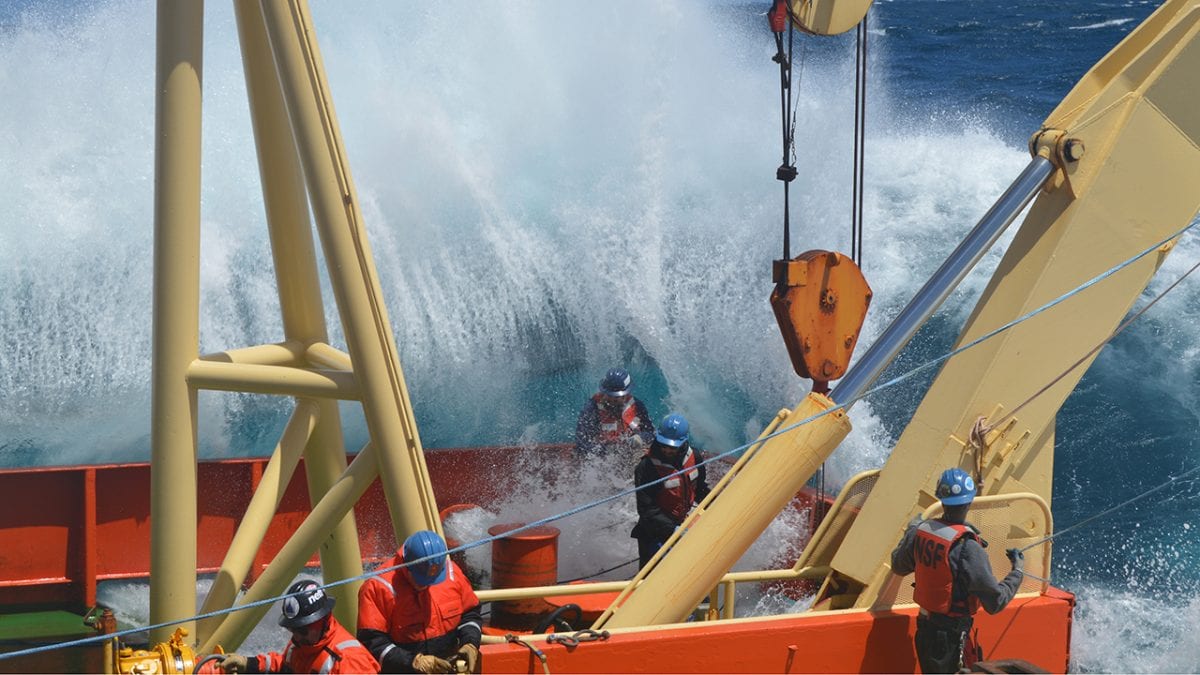

    For scientists and ships’ crews, maintaining equipment at OOI arrays can mean confronting fierce weather, strong ocean currents, and massive waves. This one drenched people working on the deck of the Nathaniel B. Palmer during a WHOI-led scientific mission to the Global Argentine Basin Array in November 2015. (Photo by Mitch Elend, University of Washington)
  • 004 OOI_PioneerArray_2016-06-23_Jack_Cook.jpg

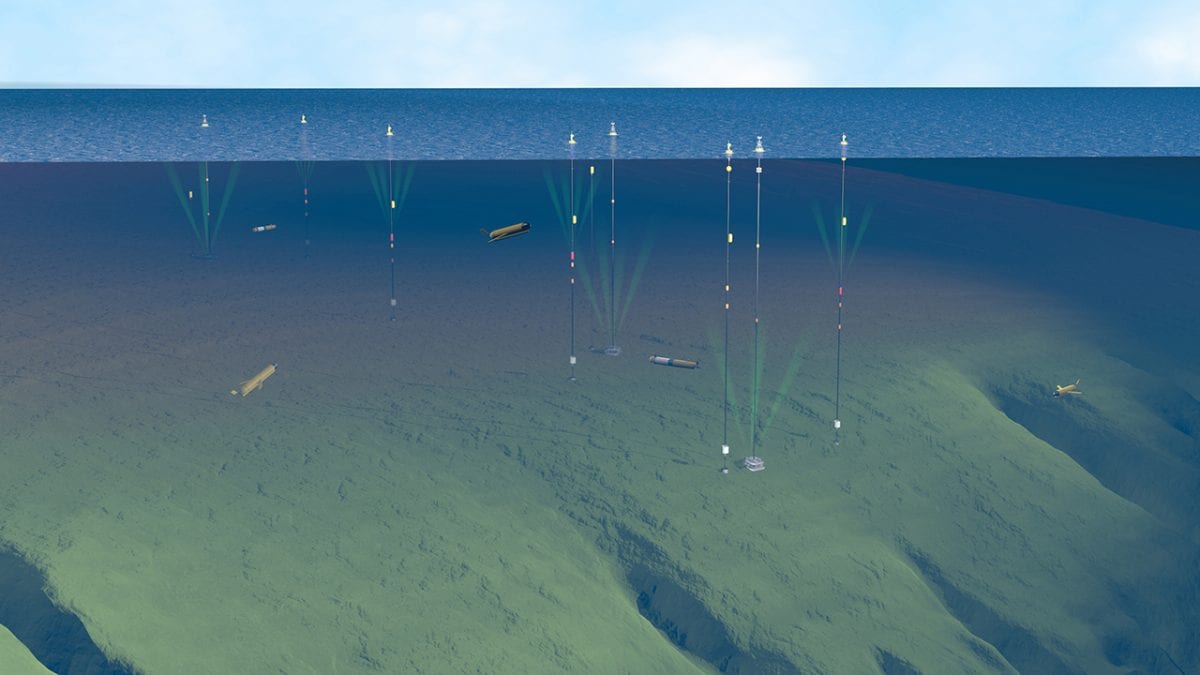

    The Coastal Pioneer Array consists of three types of moorings, ocean gliders, and autonomous underwater vehicles, making it one of the most complex arrays in the OOI network. The moored array spans more than 160 square miles across the sloping edge of New England’s continental shelf. The biologically productive “shelf break” is of particular interest to scientists: it represents a transition zone between relatively fresh, nutrient-poor water near shore and saltier, nutrient-rich water in the deep ocean. But the Pioneer Array won’t stay off New England forever—the plan is to move it to a different coastal region in five years. (Illustration by Jack Cook, WHOI Graphic Services)
  • 005 00I_glider_ballasting_2016-05-09_Tom_Kleindinst.jpg

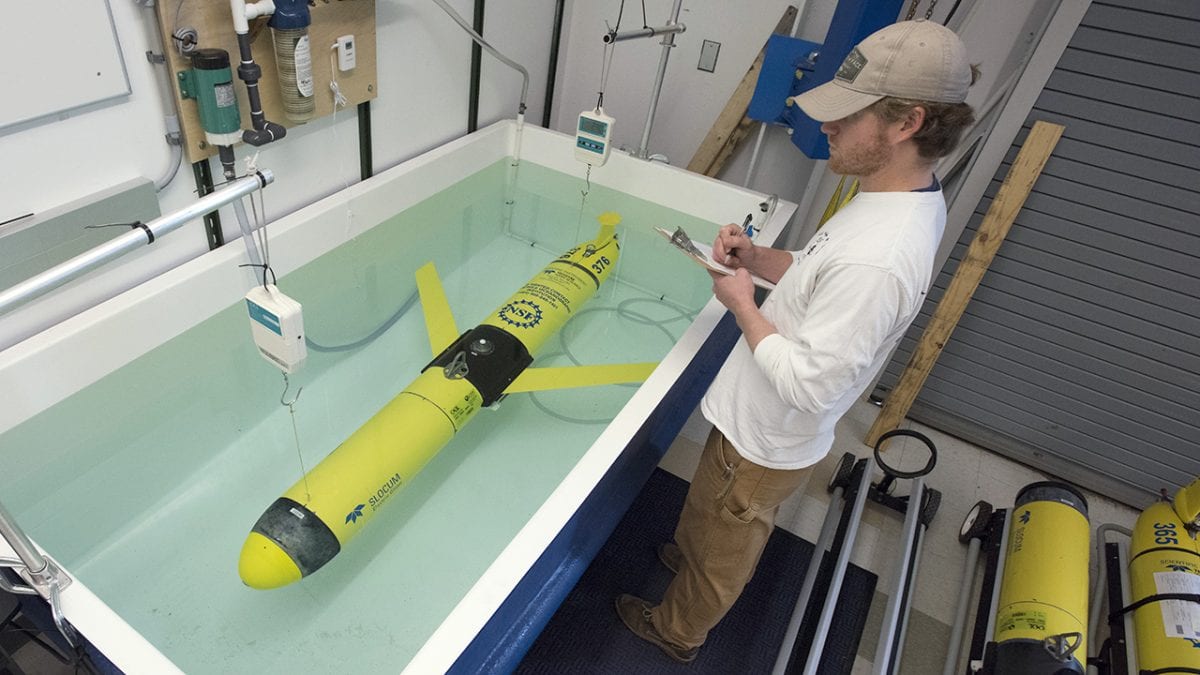

    The OOI is not just made up of instrument systems anchored to the sea floor. Ocean gliders such as this one move between and beyond the moorings for months at a time, measuring temperature, salinity, and other critical ocean properties that help scientists understand what is happening far beyond the anchored moorings. The vehicles have no motor: they literally glide through the water by changing their buoyancy. This glider is having its buoyancy tested in the lab prior to deployment at sea. Once the vehicles are deployed, glider pilots at WHOI test and monitor the gliders remotely and can reprogram them to keep them on course or to investigate oceanographic features of interest. (Photo by Tom Kleindinst, Woods Hole Oceanographic Institution)
  • 006 00I_REMUS600_2016-05-31_V_LaCapra.jpg

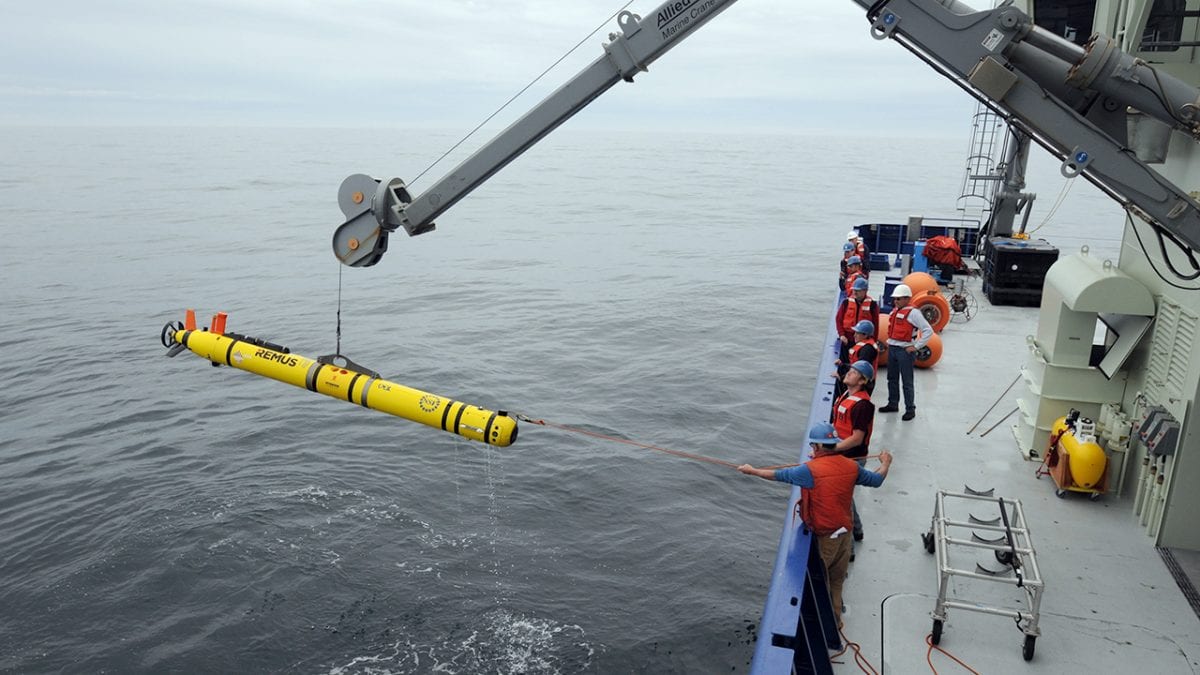

    In addition to gliders, scientists at the Pioneer Array use another type of mobile platform—the REMUS 600 autonomous underwater vehicle, or AUV—to carry out intensive, short-term investigations. Because REMUS AUVs are propeller-driven, they can move more quickly through the water than gliders, capturing high-resolution data on currents, nutrients, and other ocean properties. During a mission, scientists onboard a ship can communicate with a vehicle when it is submerged using an acoustic modem, or by satellite when it comes to the surface. (Photo by Véronique LaCapra, Woods Hole Oceanographic Institution)
  • 007 OOI_mooring_action_2012-04-10_Ken_Kostel.jpg

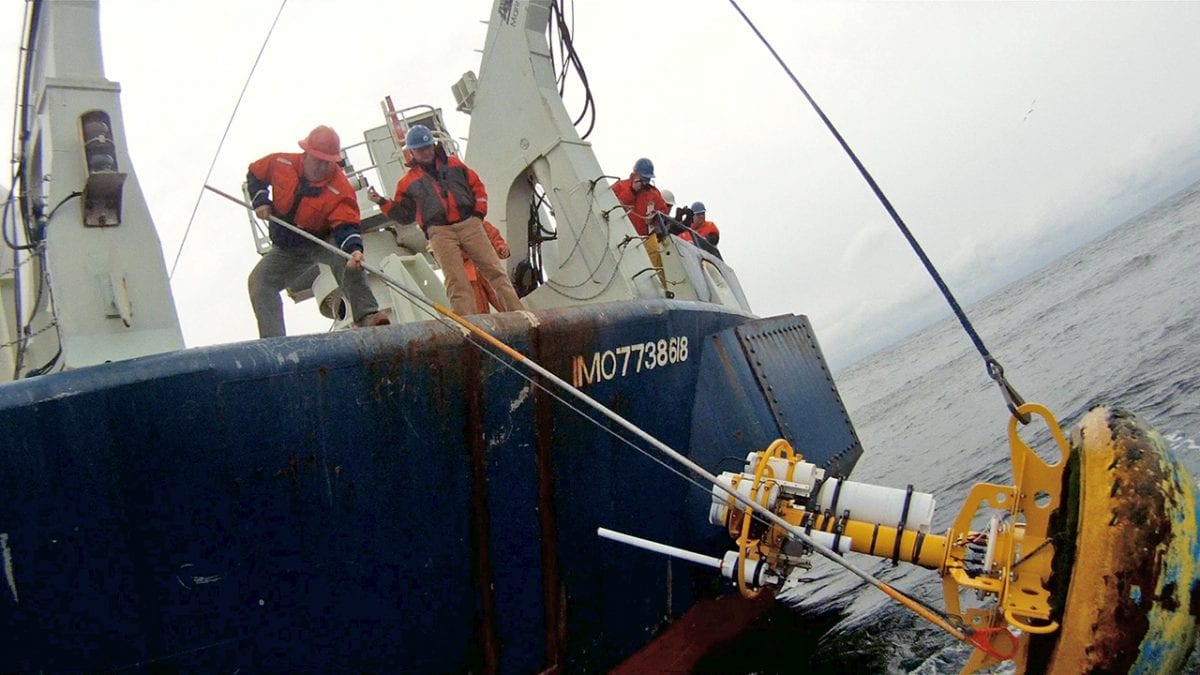

    Salt water, waves, and marine life all take their toll on scientific equipment. To keep the Pioneer and Global Arrays functioning year-round, WHOI maintains two complete sets of every mooring, instrument, and vehicle. Once a year—twice, in the case of Pioneer—WHOI engineers and scientists travel to the arrays, pull everything out of the water, then deploy clean, repaired, and fully charged replacements. Maneuvering thousands of pounds of equipment in unpredictable waters takes considerable muscle, but also skilled coordination and long experience working at sea. (Photo by Ken Kostel, Woods Hole Oceanographic Institution)
  • 008 OOI_Station_Papa_Empire_State_2016-07-25.jpg

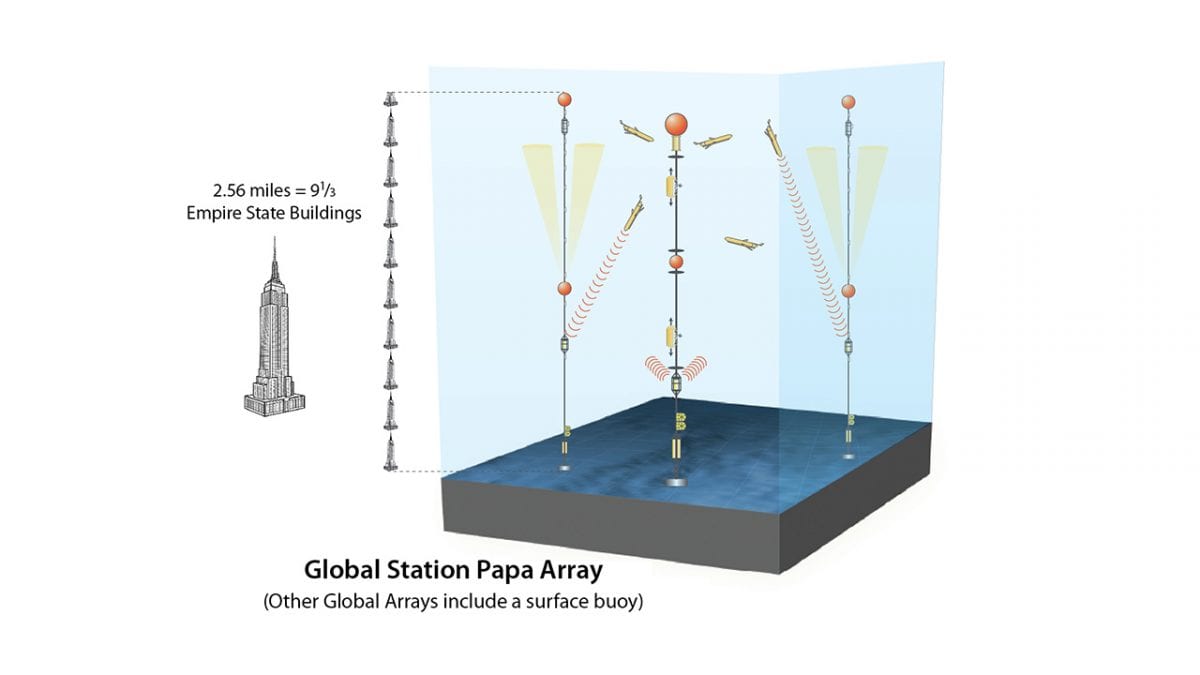

    Building and maintaining Global Arrays is an impressive feat of engineering. Moorings at these deep water arrays extend several miles to the ocean floor, making them especially challenging to design, deploy, and recover. They also extend the reach of scientists to parts of the ocean that are difficult to study any other way. (Illustration by Jack Cook, WHOI Graphic Services)
  • 009 OOI_welding_mooring_2015-09-24_Tom_Kleindinst.jpg

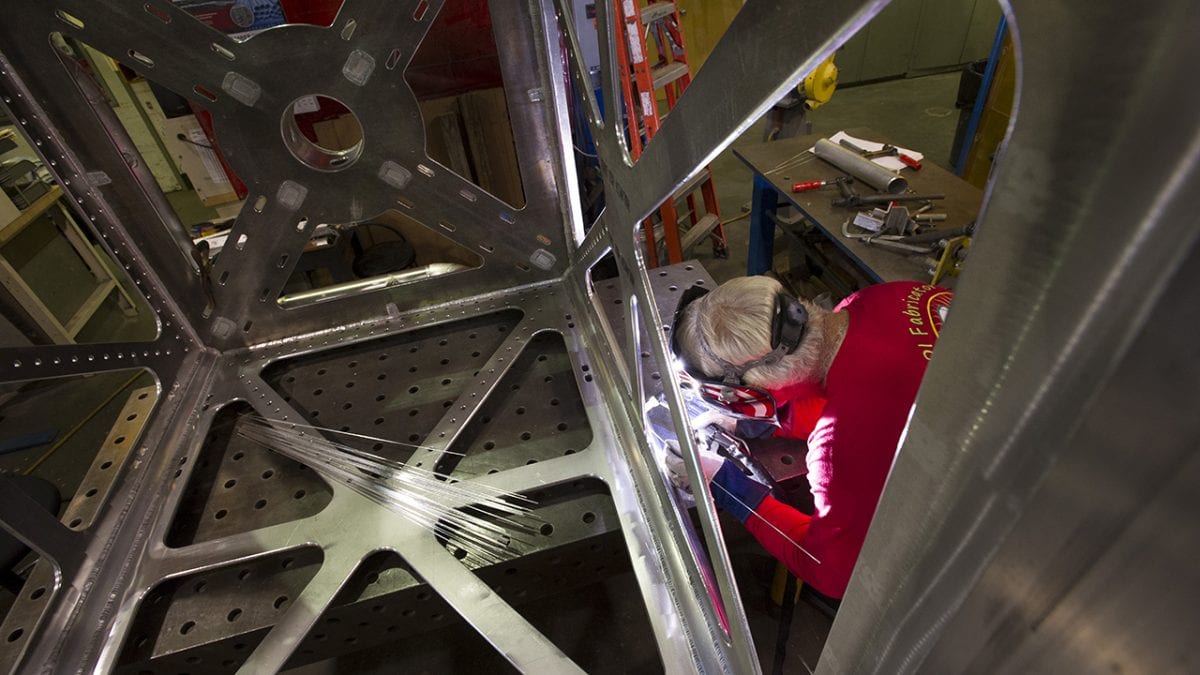

    From day one, WHOI has helped transform the OOI from vision to reality. WHOI’s engineers and technicians designed, built, and tested the project’s platforms and instruments to withstand storms, corrosion, shark bites, and other onslaughts of full-time deployment at sea. Now that the program has transitioned from build-out to full operation, WHOI’s job is to keep all the components of the Global and Pioneer Arrays in good working order. Here, a WHOI welder assembles the lower frame of a coastal surface mooring. (Photo by Tom Kleindinst, Woods Hole Oceanographic Institution)
  • 010 OOI_mooring_and_Knorr_2014-12_Kent_Sheasley.jpg
    The OOI’s moorings, ocean gliders, and propeller-driven autonomous underwater vehicles aren’t just working around the clock to collect oceanographic data—they’re transmitting most of those measurements back to shore in near-real time, via the Iridium satellite network. The rest of the data are recovered when the instruments are brought in for servicing. Researchers, educators, and anyone else with access to an Internet connection can download the data for free using the OOI data portal. The information is already yielding scientific insights: WHOI researchers recently used data from an OOI glider to help reveal previously unknown marine circulation patterns at the edge of the continental shelf. (Photo courtesy of Kent Sheasley, Woods Hole Oceanographic Institution)
