1994 LEO-15 Deployments
1994 Contents:
- Instrument platforms
- Overviews:
- Entire June deployment.
This shows 1 and 5 mhz ABSS backscattered intensities plotted with the
relevant environmental forcing parameters for the entire June segement
of this deployment.
- Entire MAY deployment 1and
5 mHz ABSS, VACM wave speeds, current speed, temp, salinity, and winds.
- One day ABSS record
showing bedform evolution during a storm on June 28th.

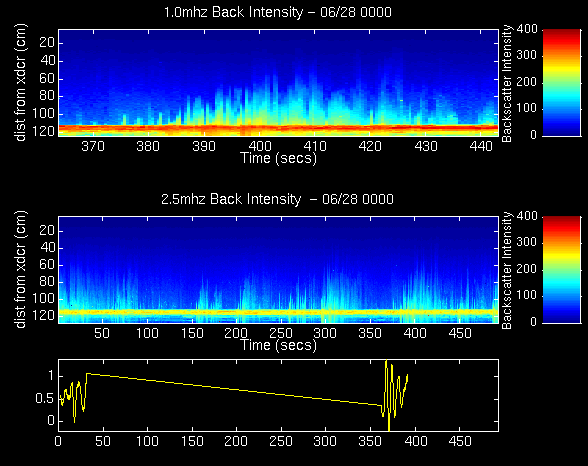

- Eighty second record
from the narrow beam (3cm footprint) ABSS system showing a high resolution
view of active sediment resuspension during the June 28th storm. High frequency
data from the wider (60cm footprint) beamwidth ABS
.
- Upper water column scatterers
imaged by the upward looking 1MHz sonar on May 25th. are most likely to
be biological scatterers since there is not sufficient wave and current
activity to suspend sediment as seen by the downward looking sonar. If
so what type of creatures are they??

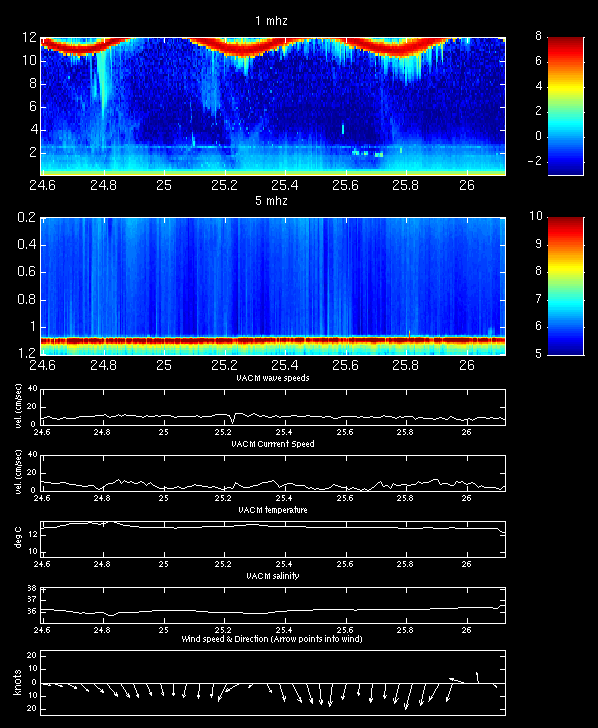

- A Movie showing a "front"
as indicated by a rise the in tempertaure and a corresponding drop in salinty
with a convergence of biological scatterers near May 25th. Here is another
movie showing a similar event
during the June deployment.
- Image showing ABS and time
series as this front passes by on May 24.8.

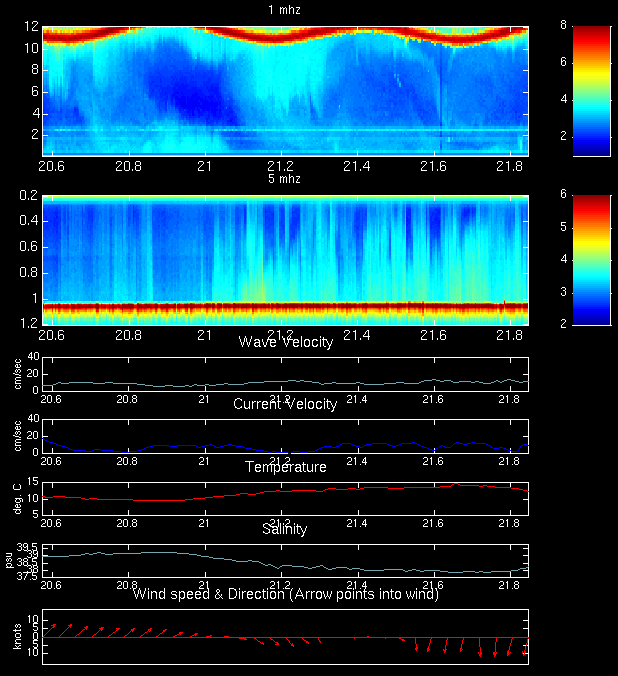

- Here is an imageof a
similar sequence of events from the june deployment.
- Near surface scatterers on may 25 19hrs. These look more like wave
injected bubbles.
Back to Sediment Transport
at LEO-15 Contents
