ITP 14 Data Processing

  Email    Print  PDF  Change text to small (default) Change text to medium Change text to large

Enlarge Image

ITP surface buoy data


Enlarge Image

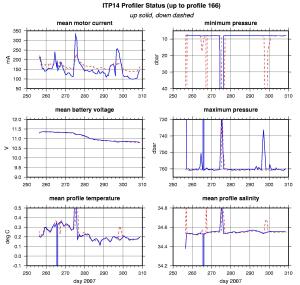

ITP prfiler engineering data


Enlarge Image

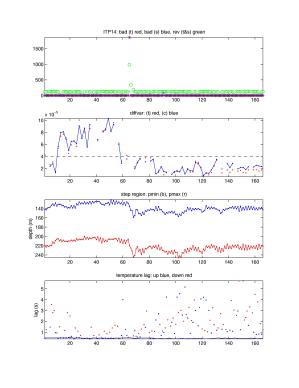

Number of bad points removed (top); variance of verticle difference of temperature and salinity in step region for up-going profiles; depth of staircase layer; temperature lag (bottom).


Enlarge Image

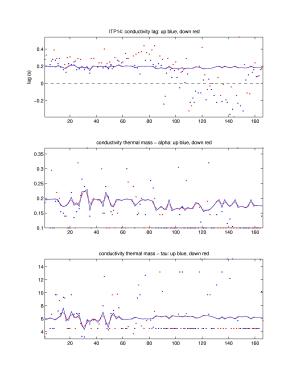

Top: conductivity lag, Middle: conductivity thermal mass amplitude correction, Bottom: conductivity thermal mass lag correction


Enlarge Image

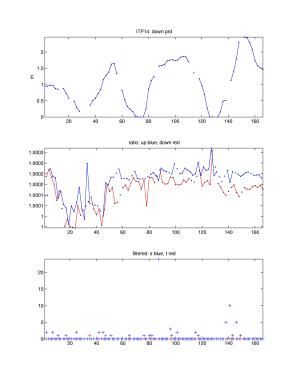

Top: down pressure deviation correction, Middle: salinity ratio adjustment, Bottom: number of filtered spikes.


The 166 profiles that were recovered from the ITP were processed according to the procedures described in the ITP Data Processing Procedures, and the processing parameters are shown in the figures to the right.  Despite the short duration of operation, the profiler experienced 26 software resets (and typically incomplete vertical coverage for the next subsequent profiles) due to the 2007 software bug.  This percentage of resets (15%) was superseded by only one other ITP (number 16 encountered 25% resets).  On the other hand, the temperature and salinity data are remarkably free of errors (only profile 65 was removed because of corrupted data).

Significant variability in the part of the water column where thermohaline staircases have been observed in the past indicate that perhaps some remnants of these features may have been present early in the time series (profiles 10-50), from which sensor lags could be estimated.  These estimates coincided with typical standard lags, so these were applied throughout the series.  Rapid drift was a factor at several instances, so that the profiler was unable to climb the wire against the current.

See the Data Products tab to the left for descriptions of the three levels (I, II, III) of data processing and to access all data.
