ITP19 Data Processing

  Email    Print  PDF  Change text to small (default) Change text to medium Change text to large

Enlarge Image

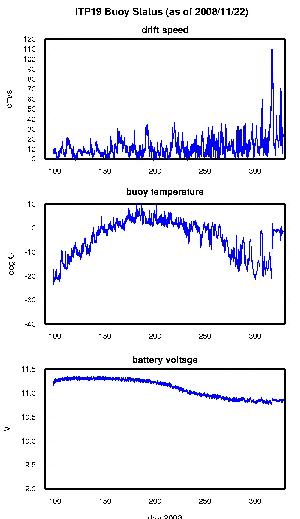

ITP Surface Buoy Status


Enlarge Image

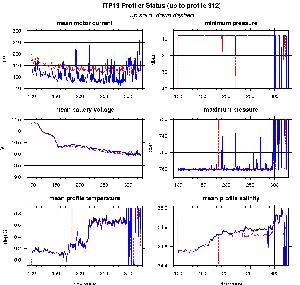

ITP profiler engineering data.


Enlarge Image

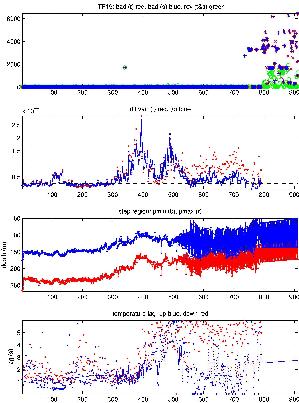

Top: number of bad points removed, Middle: variance of verticle difference of temperature and salinity in step region for up-going profiles, Bottom: temperature lag.


Enlarge Image

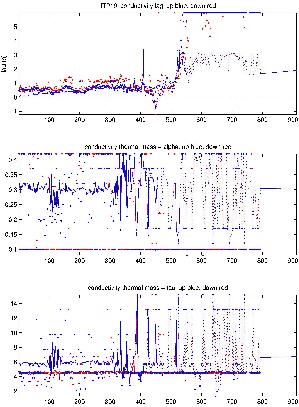

Top: conductivity lag, Middle: conductivity thermal mass amplitude correction, Bottom: conductivity thermal mass lag correction


Enlarge Image

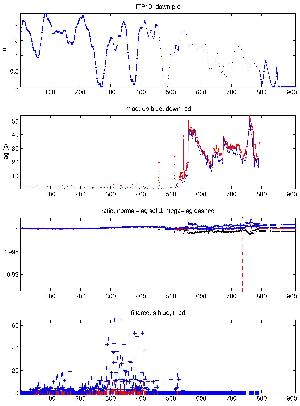

Top: down pressure deviation correction, Middle: salinity ratio adjustment, Bottom: Number of filtered spikes.


The 912 profiles that were recovered from the ITP were processed according to the procedures described in the ITP Updated Data Processing Procedures.  The processing parameters for ITP 19 are shown in the figures to the right.  Sensor lags were typical for the first 474 profiles (237 days) but became very large (more than 5 seconds).  Mega-lag corrections were applied to compensate for the extreme fouling or pump failure at reduced quality and with residual up/down deviations beginning with profile 528.  Profiles 748 to 758, 774 to 776 and those from 793 and above were beyond meaningful lag correction and were eliminated from the final product.   A broken profiler spring (discovered when the system was recovered) and excessive drift speeds through and after Fram Strait hindered the profiler from climbing the wire against the drag in a number of profiles after 800.

See the Data Products tab to the left for descriptions of the three levels (I, II, III) of data processing and to access all data.



Last updated: August 26, 2014
