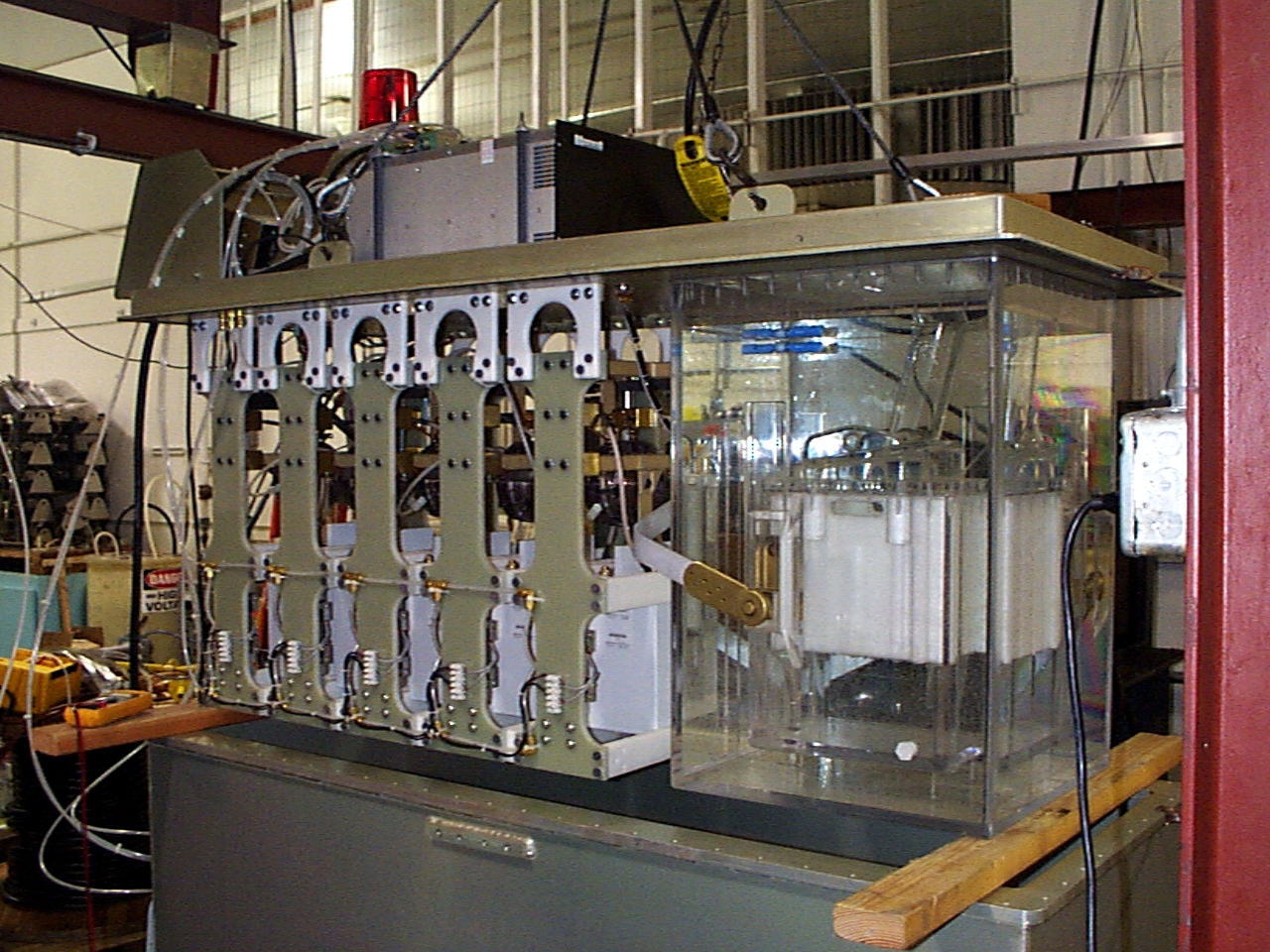

The Marx circuit of the WHOI electric pulse disaggregator. Here, the electric heart of the EPD is lifted out of the holding tank that is filled with transformer oil. On top (from left to right) the trigger pulse generator (with red warning light) and the high-voltage generator are visible. The clear tank to the right of the Marx generator is filled with water and accepts the sample holder with the steel plates (small white box inside the clear tank). (Jud Hammon, Mike Ingram, Mike Klatt and Tom Tatman)
