Export Pathways: Project Logistics
|
For any questions regarding this page, please contact
hfurey@whoi.edu. |
|
Experiment Design
Journal
Cruise Schedule
Forms
Contacts
Sound Sources
Floats
|
Experiment Design

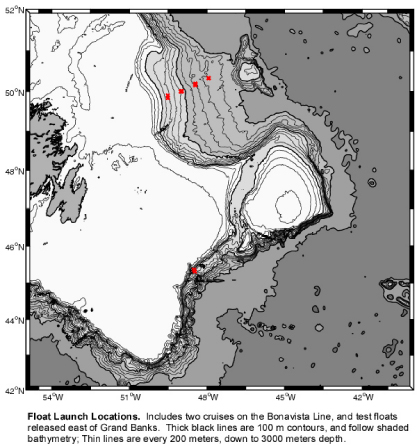

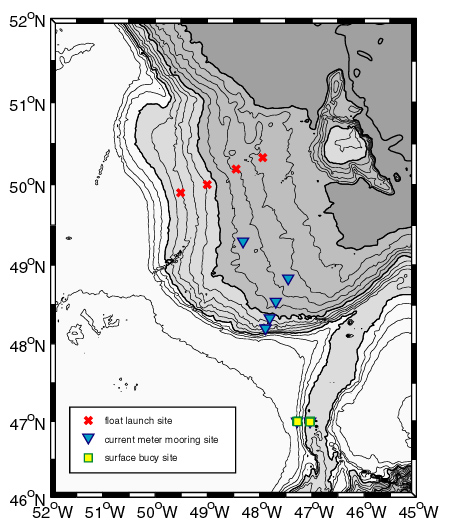

The Export Pathways Experiment was designed to examine the pathways of the Deep Western Boundary Current (DWBC) in
the Labrador Sea as it meets and passes by the Flemish Cap. Seedings occur at two levels (700 and 1500 meters) to target two
levels of Labrador Sea Water within the DWBC. DLD floats were/are released approximately every three months, whether directly
from a ship, or from a time release mooring. Float mission length is two years, and sound source array is designed to be heard by

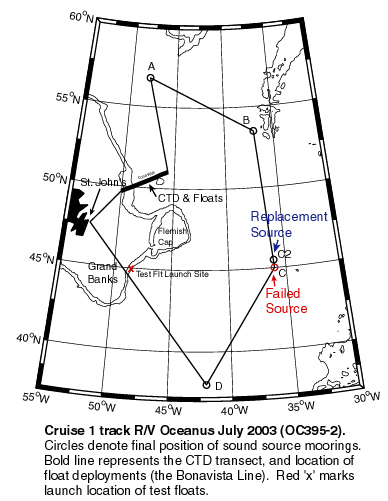

floats in the Labrador Sea and around the Grand Banks into the Newfoundland Basin. The first cruise was on the WHOI R/V Oceanus:
on this cruise sound source array was moored, CTD stations were taken, and floats deployed. Each subsequent cruise was/will be

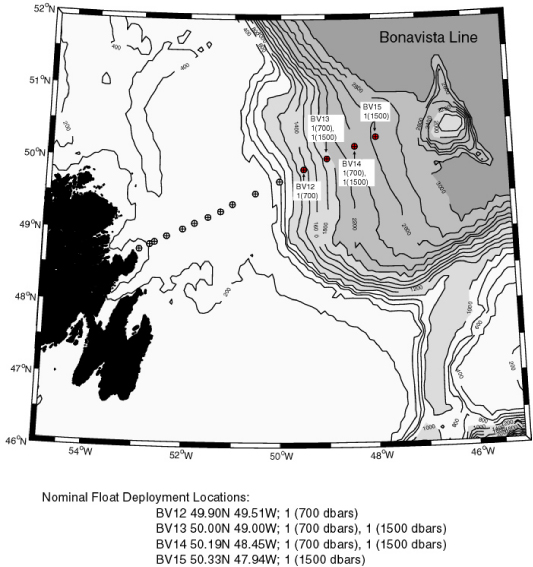

from the Candian Fisheries vessels Hudson or Teleost, which performs a repeat survey along the Bonavista Line every May, July,
and November. The November deployment will include dual release floats which will release and begin drifting each February 15th. |
Journal
|
journal
|
This is a password protected site. Experiment participants are invited to keep a central,
current journal of cruise and experiment developements. |
|
Cruise Schedule
|
|
science crew |
|
|
miscellaneous |
| R/V Oceanus OC395-2 |
July 9-23, 2003 |
Amy Bower, WHOI, Chief Scientist
Susan Lozier, Duke, Scientist
Paula Perez-Brunius, WHOI, Res. Associate
Rochelle Reardon, WHOI, Technician
Brian Guest, WHOI, Technician
Brian Hogue, WHOI, Technician
Jaime Palter, Duke, Graduate Student
Ana Rappold, Duke, Graduate Student |
6 single release (SR) flts |
|
 |
R/V Oceanus
Cruise OC 395-2 cruise report. |
 |
Photo album. |
|
| CSS Hudson |
Nov 16 - Dec 6, 2003 |
David Fisichella, WHOI, Research Assistant
Brian Hogue, WHOI, Technician |
6 SR, 6 dual release (DR) |
|
One float damaged in shipping. |
| CCGS Cowley |
Feb 21- , 2004 |
George Tupper, WHOI, Technician
(did not sail, but trained crew of ship to
deploy test floats at dock in St. John's) |
2 SR, with short (3 wk, 6 wk) missions. |
|
First test float that surfaced indicated that source C has failed (and D working). |
| CSS Teleost |
Apr 18, 2004 |
George Tupper, WHOI |
6 SR |
5 SR |
One float damaged in shipping. |
| CSS Templeman |
July 20- Aug 5, 2004 |
Rick Rupan, WHOI |
6 SR |
6 SR |
Breck Owen's solos to be deployed on this cruise as well. |
| R/V Endeavor |
Aug/Sep 2004 |
George Tupper, WHOI |
source replacement, recovery |
successful! |
Recovered failed Webb source (C), and replaced with rebuilt Rossby loud source from Lab Basin Exp. |
| CSS Hudson |
Nov 28 - Dec 5, 2004 |
Brian Guest, WHOI
Nicole Mich, Duke |
|
|
The contact in Canada for the Hudson is Bob MacDonald tel. 902-426-6199. |
| CSS Teleost |
April 26 - May 9, 2005 |
Rick Rupan, WHOI |
6 SR |
6 SR |
Breck Owen's solos deployed on this cruise as well. |
| CSS Templeman |
July 11-29 2005 |
George Tupper, WHOI |
6 SR |
6 SR |
E. Colbourne states 3-day delay likely.
George went to St. John's to initialize floats, crew deployed them. |
| Thalassa |
15 July - 16 August, 2005 |
George Tupper, WHOI |
Soso deployment and recovery cruise. Replacement source C3, and new source E to be deployed. |
SUCCESS!!! |
Juergen Fisher is primary contact for German cruise on French ship.
|
| CSS Hudson |
November 28 - December 12 2005 |
Brian Guest, WHOI |
|
|
Brian will go to St. John's Nov 27-29 2005 to initialize flts,
Teleost crew will deploy them (thank you). |
| CSS Teleost |
May 2006 |
George Tupper, WHOI |
8 SR |
8 SR |
George initialized flts in port, Teleost crew deployed them (thank you!).Two extra floats left over from these returned 'broken in shipment'. |
| CSS Hudson |
November 18 - December 7, 2006 |
|
10 SR |
|
Floats will be sent initialized, and ready to deploy. These 10 floats are replacements from P. Tillier for flts that were sold to us with the wrong burn wire req's for cold water, causing them to not surface. |
|
Forms
|
|
Personnel Screening, Consent and Authorization Form. |
|
|
Statement of Medical Fitness. |
|
Contacts
Emergency Floats:
Howard Kearley, Operations Officer |
kearleyh@dfo-mpo.gc.ca |
Tel: 709-772-5956 (24 Hrs)
Cell: 709-685-0988
Fax: 709-772-5369 |
Howard Kearley
Operations Officer
Regional Operations Center
P.O. Box 5667
St. John's, NF
A1C 5X1 Canada |
|
AZMP Project Director:
Dr. Eugene Colbourn |
colbourn@dfo-mpo.gc.ca |
Tel: 709-772-6106
Fax: 709-772-4105 |
Dr. Eugene Colbourn
Physical Oceanography
Northwest Atlantic Fisheries Centre
80 East White Hills Road
P.O. Box 5667
St. John's, Newfoundland
A1C 5X1 Canada |
|
| Dr. R. Allyn Clarke |
ClarkeA@mar.dfo-mpo.gc.ca |
|
Dr. R. Allyn Clarke
Department of Fisheries & Oceans Maritimes Region
Bedford Institute of Oceanography
P.O. Box 1035
Dartmouth, Nova Scotia
B2Y 4T3 Canada |
|
SHIPPING:
Charles Fitzpatrick* |
fitzpatrickc@dfo-mpo.gc.ca |
Tel: (709) 772-5104
Fax: (709) 772-4105 |
c/o Charles Fitzpatrick
The Department of Fisheries and Ocean
Northwest Atlantic Fisheries Centre
80 East White Hills Road
P.O. Box 5667
St. John's, Newfoundland
A1C 5X1 Canada |
"Please ensure that my name
is included on each crate's shipping label.
Thanks, Charlie" |
CUSTOMS BROKER:
PFCollins Customs Broker Ltd; Brian Collins/LisaDrover |
imports@pfcollins.com |
Tel: (709) 726-7596
www.pfcollins.com |
P. F. Collins Customs Broker Ltd.
162 Duckworth Street
P.O. Box 5514
St. John's, Newfoundland
A1C 5W4 Canada |
Lisa Drover writes: "Re research floats shipped to Dept of Fisheries for deployment at High Seas.
I attach a sample CCI and a fillable CCI that you can complete when sending
these floats to Canada in the future. If you have any questions pls do not
hesitate to contact Brian Collins or myself."
CCI.xls; Sample CCI.xls |
Thalassa Ship's AGENT:
AVALON CUSTOMS BROKERS; MR PAUL AITKEN |
acb@aharvey.nf.ca |
Tel: + 709 576 4761
Fax : + 709 576 0159 |
AVALON CUSTOMS BROKERS
60 WATER STREET
3RD FLOOR, SUITE 301
ST JOHN’S, NEWFOUNDLAND
A1C 1A3
CANADA
|
|
|

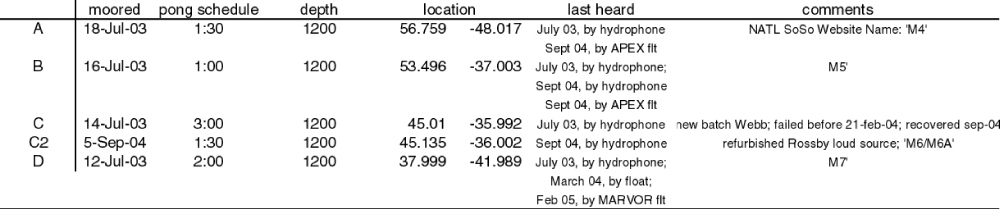

Sound Sources
|
Floats
| Test Float Results: |
x564, |
x563 |
|
| |
