The

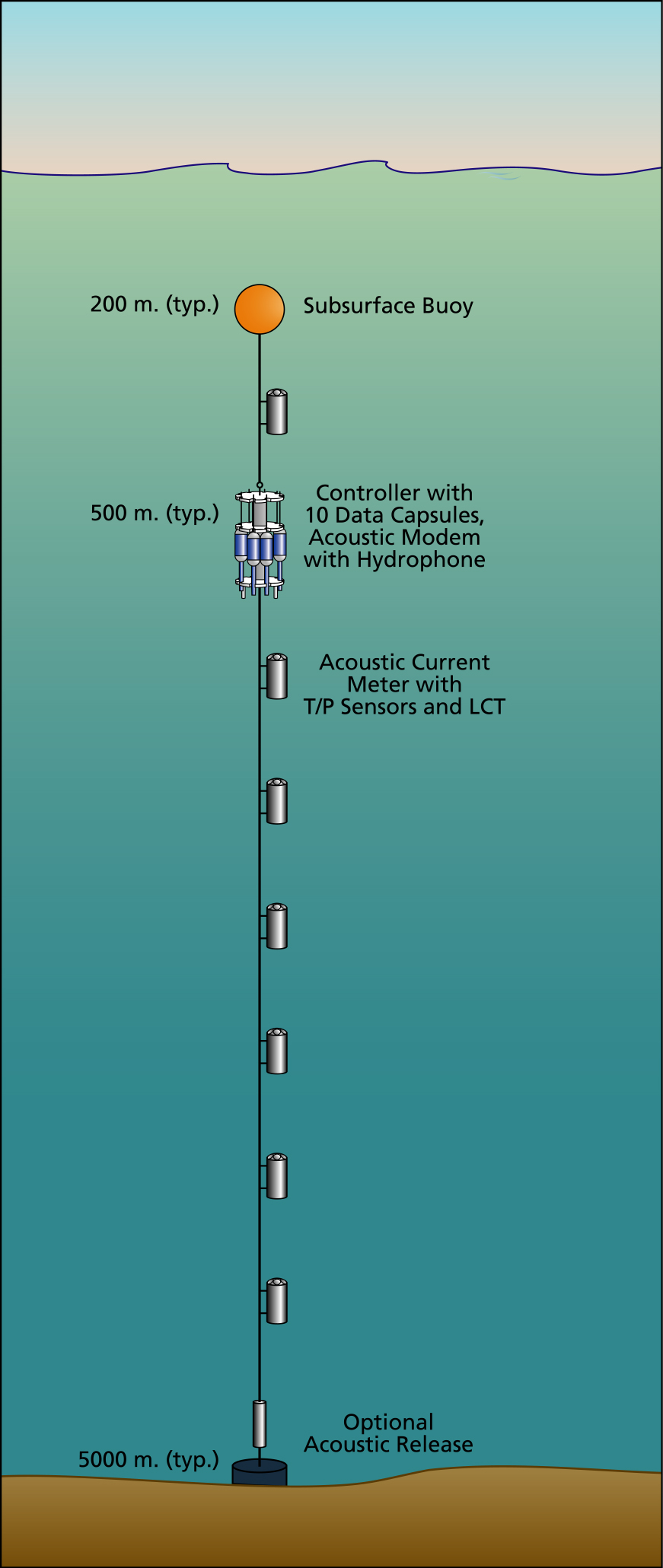

prototype ULTRAMOOR design is a subsurface mooring that supports
10 (or more) discrete acoustic current meters. Travel time and acoustic
Doppler sensors are being evaluated. Each current sensor is equipped
with a small, low power acoustic transmitter that transfers compressed
data from its instrument to a receiver located below the euphotic
zone (nominally at 500-m depth). The acoustic receiver forwards
these data to an array of up to 10 expendable data capsules. In
a typical scenario a capsule would release every 6 months over a
5-year deployment interval. Each capsule contains 4 Mbytes of solid-state
memory and an Argos transmitter, which transfers the data via satellite
as the capsule drifts away from the mooring. The initial long-term
test of the ULTRAMOOR prototype was begun on November 20, 2001 offshore
Bermuda. Retrieval of the system is scheduled for November 2004.
This
program is funded by NSF OCE-9810641
