Oil, Microbes, and the Risk of Dead Zones

Did oil-eating microbes deplete oxygen in the Gulf of Mexico?

   Print Change text to small (default) Change text to medium Change text to large

Ben Van Mooy with a water sample from Gulf of Mexico after oil spill

Enlarge Image

WHOI chemist Ben Van Mooy holds a sample of water taken from the plume of hydrocarbons more than 1,000 meters below the surface of the Gulf of Mexico. He has prepared the sample for the Winkler titration, a method that determines the concentration of oxygen dissolved in the water. Van Mooy's work in the Gulf showed that oxygen levels in and around the plume were not significantly lowered by microbial activity. (Photo by Dana Yoerger, Woods Hole Oceanographic Institution)

Ben Van Mooy adds reagents to water samples from oil plume

Enlarge Image

WHOI chemist Ben Van Mooy adds chemical reagents to water samples in preparation for an oxygen assay called the Winkler titration. The samples were taken from within and outside of the plume of oil from the ruptured wellhead at the Deepwater Horizon oil rig in the Gulf of Mexico. The Winkler method was developed in 1888 and is still the "gold standard" for determining oxygen concentrations in liquid samples. (Photo by Dana Yoerger, Woods Hole Oceanographic Institution)

oxygen optode test for dissolved oxygen

Enlarge Image

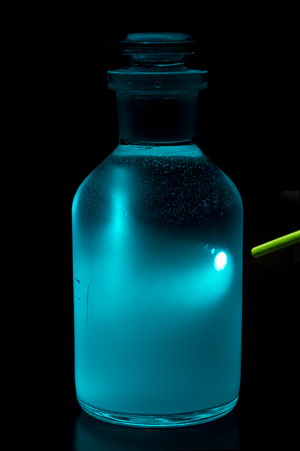

A new technique for determing the concentration of oxygen in a liquid sample uses a laser (coming from the green fiber, right) and an oxygen-sensitive sticker called an optode (pale spot) inside the sample bottle. When struck by the laser, the sticker fluoresces; the wavelength of the light it gives off indicates the concentration of oxygen in the fluid around it. WHOI chemist Ben Van Mooy used this method to monitor microbial activity in samples of water taken from within and outside the oil slick on the surface of the Gulf of Mexico after the Deepwater Horizon oil spill. (Photo by Tom Kleindinst, Woods Hole Oceanographic Institution)

Ben Van Mooy and others on ship near the burning Deepwater Horizon oil rig

Enlarge Image

From the deck of the research vessel Endeavor, Ben Van Mooy (right) and others survey the scene near the burning Deepwater Horizon oil rig in the Gulf of Mexico in June, 2010. Van Mooy was a member of a team of WHOI scientists who went to the Gulf to study aspects of the oil spill, including how fast it was flowing out of the ruptured wellhead and whether it was flowing in a deep plume of hydrocarbons. Van Mooy's experiments focused on whether microbes were eating oil in the surface slick and in the deep plume, and whether their activities were lowering oxygen levels enough to endanger fish and other marine life. (Photo by Dan Torres, Woods Hole Oceanographic Institution)

Related Links

» Ben Van Mooy

» WHOI's response to the Deepwater Horizon oil spill

» Using lipids as biomarkers

Source: Oceanus Magazine

In the scramble to get to the Gulf of Mexico to study the Deepwater Horizon oil spill, Ben Van Mooy found out firsthand why the National Science Foundation called its emergency research funds “Rapid Response” grants. Within two weeks of writing his proposal to do research on the spill, Van Mooy was at sea in the Gulf.

“I wrote the proposal on Thursday, I got the money on Sunday, and I loaded the ship on Monday and Tuesday,” he said. “That’s never happened before, at least to me. Usually it could be a year or longer between getting the proposal together and being out on your cruise.”

Van Mooy’s key question was: Were microbes eating the oil?

“I figured that the easiest way to figure out what microbes were doing was to measure the rate of their consumption of oxygen,” explained Van Mooy, a marine chemist at Woods Hole Oceanographic Institution (WHOI). “When microbes respire, it’s just like us respiring. We take food and oxygen and combine them together and make energy and carbon dioxide, and that’s what microbes do, as well.”

He initially planned to look for microbial respiration in the oil slick on the surface of the Gulf, but soon realized the cruise gave him the opportunity to expand his project. WHOI colleagues Rich Camilli, Chris Reddy, Dana Yoerger, and others were mapping and characterizing the petrochemical plume that was unfurling from the broken wellhead more than 1,000 meters below the surface. “Since I was along for the ride, I also began to collaborate with them on this work on the plume,” Van Mooy said.

‘Dead zones’

Shortly before their cruise, the news media had carried alarming reports that microbes had already drawn down oxygen levels near the plume enough to create vast “dead zones.”

“That’s what they call areas with no oxygen,” said Van Mooy. “And the fish were going to die, and the shrimp were going to die, and the whole Gulf of Mexico fishery was going to collapse—very dire predictions.”

Van Mooy was skeptical. Although he usually worked with surface microbes, he had enough experience working at mid-depths to have a sense of how quickly the microbes might work. “Those were quite exceptional statements that were being made. It seemed like the drawdown of oxygen was way too fast. Too fast and too drastic.”

The initial measurements of depleted oxygen levels had been made with an oxygen-detecting microelectrode lowered into the water. It’s a high-tech method that has seen a lot of use in recent years, but Van Mooy thought the device might have been affected by the oil it encountered in the Gulf.

“I could imagine taking a sensitive little sensor and running it through a slick. You know, what would that do? It seemed to me very likely that the oil might coat the sensor, and then it wouldn’t function properly.”

A tried and true method

Van Mooy replicated the earlier study by making some of his measurements with an oxygen microelectrode, but he also used another, very different, method to determine oxygen levels. The Winkler technique is about as far from cutting-edge as can be; it was developed in 1888 by a young Hungarian chemist as part of his doctoral studies. It involves bringing samples of water up to the ship and then engaging in procedures that will sound familiar to anyone who’s ever taken Chemistry 101.

“You take water, you add sulfuric acid and some other reagents, and you wind up doing this titration,” said Van Mooy. “The bottle changes color when it reaches the end point. It’s very like, you know, chemistry.”

It’s also time-consuming, messy, and requires certain lab skills. “Not everybody can make this measurement,” said Van Mooy. “You have to concentrate. You can mess up a Winkler really easily, so you’ve gotta know what you’re doing.”

Despite its difficulty, the Winkler titration is the gold standard for measuring oxygen levels. It’s so reliable that one of its most common uses today is to verify readings made by other means, including microelectrodes.

At the Deepwater Horizon site, it soon became apparent that the two methods were providing very different results. The microelectrode consistently showed substantially lower oxygen levels. That led to one of Van Mooy’s favorite moments of the cruise. As he and the other scientists were discussing whether oil contamination could be responsible for the discrepancy, WHOI research associate Cameron McIntyre Googled “oil and oxygen microelectrode.” Lo and behold, Sea-Bird Electronics, the company that made the microelectrode, had posted a warning about using the device in oily water: “Avoid fouling the oxygen membrane with oil or grease as this causes a calibration shift toward erroneously low readings,” it said.

Van Mooy recalled, “It was nice to know that our data and discussions had converged on an established fact, but we could have spared ourselves this lengthy and intense scientific discussion if we’d just searched the web an hour earlier.”

Even had they done that, Van Mooy said he still would have tested for oxygen with both methods. While the potential for oil contamination to affect the oxygen microelectrodes had already been established, the data he collected actually demonstrated that this probably happened at the Deepwater Horizon site.

Spreading the news—carefully

Van Mooy drafted a quick report on his findings and sent it to government officials involved in the spill response.“What I asked was for that report to stay within the agencies and for them to use it to make decisions,” Van Mooy said. “We had this finding. We thought it was important, and we let them know immediately, but we didn’t want them or any of us to hold a news conference or something like that and say, ‘Hey, the oxygen anomaly that we thought was there is not there.’ We were all very committed to having what we did go through the peer-review system. It’s a check on the quality of the science, and we can’t forget that. You know, maybe we were making a mistake. We felt very strongly that we needed to go through the whole process before we let any of our results be known to the press.”

“Prudence trumps urgency,” Reddy said. “In this case there was an urgency factor, but I think that we answered the urgency factor by sending this memo almost as soon as we could to say, ‘Look, anybody who comes better Winkle.’” Government scientists heeded this advice, and since that time hundreds of Winkler measurements have been made in the Gulf.

Van Mooy’s results, along with the map of the plume developed by his colleagues, were reported in October in the journal Science. He did find slightly depressed oxygen levels in one area of the plume, but nowhere near the drawdown reported earlier—and nowhere near being dangerous for marine life.

“We couldn’t distinguish oxygen levels from what you might expect if you had just gone out there without an oil spill. So low oxygen wasn’t going to be a major event that would impact the fisheries in the Gulf,” he said.

That was good news, of course, but it had a bad-news flipside: The oil wasn’t being degraded very fast. Van Mooy said that could have been because microbes had a hard time attacking chemical components from the spilled oil that remained in the plume, while more edible compounds found their way to the seafloor or to the surface.

Scarcity at the surface

Van Mooy then turned his attention to oil on the surface. Much has been said about the unique challenges presented by a major spill at great depth, but in the case of the Deepwater Horizon disaster, the surface slick was also very unusual. Surface waters of the Gulf of Mexico, like those of the North Atlantic, are very low in nutrients, such as phosphorus, that microbes require to grow and reproduce. The only major oil spill that has occurred in a similar environment was the wreck of the tanker Prestige off the northern coast of Spain in 2002. Unlike Deepwater Horizon, that spill didn’t go on for weeks (“It was an event; this was like a continual faucet,” said Van Mooy.) And winds soon blew the slick closer to shore, where nutrient levels were higher. So scientists had never before had an opportunity to study what happens when massive amounts of oil are released into low-nutrient waters.

Van Mooy expected that microbes wouldn't eat much of the surface slick, because they lacked the other nutrients they would need to reproduce and convert all those extra calories into more microbes.

“I thought the oil would just lie there on the surface,” he said. “It’s like us—you couldn’t live for the rest of your life just eating olive oil, right? You need other nutrients.”

He collected samples of water from inside and outside the slick and incubated them in the ship’s lab for 36 hours, measuring the rate of oxygen consumption periodically to find out whether microbes in the samples were eating the oil. He gave some samples a dose of phosphorus and other nutrients to see if that would prompt them to eat more oil.

For this experiment, Van Mooy used yet another method of detecting oxygen levels. He glued an oxygen-sensitive sticker to the inside of each incubation bottle. The sticker fluoresced when he shone a laser on it. The wavelength of light it gave off indicated how much oxygen was present.

Van Mooy did not invent the technique, which is a few years old, but he is among the first to use it with oceanographic samples. The method works in oily water and is quicker and easier than Winklers. It also allowed him to take multiple readings over time from a single sample. Winklers destroy the samples, meaning a researcher has to have many more in hand to start with.

Eating increases, but populations don’t

The results were clear—and unexpected. In water from outside the slick, respiration rates were normal (that is, moderately low). In water from within the slick, respiration rates were about 10 times higher. The microbes were consuming oil at a very fast rate. But they also lacked nutrients: Adding extra nutrients to the bottles boosted microbial respiration even more.

Van Mooy was surprised that the microbes were able to respire so much oil, but the strangest result of the project came when Van Mooy brought frozen samples of slick and non-slick water back to Woods Hole. Joint Program student Bethanie Edwards [see sidebar below] analyzed lipids, the oily compounds that organisms use to make their cell membranes. Edwards found that lipids from microbes did not increase, indicating that microbial populations didn’t grow over the course of the experiment.

How could the microbes be eating so much but not multiplying?

“That’s the thing! We don’t know,” said Van Mooy. “I thought they weren’t going to be able to respond (to the oil) because there wasn’t enough of the other nutrients they needed. But what we found was exactly the opposite.”

Van Mooy thought maybe the microbes had reproduced, and their excess numbers were grazed down by tiny marine animals, or zooplankton. But Edwards also looked at the lipids of grazing organisms and found that their biomass didn’t go up, either. She suggested the microbes may have converted the oil into some kind of storage molecule, which they could tap for energy later if nutrients became more abundant. Edwards recently started using an instrument called a flow cytometer that counts microbial cells in the preserved samples, to verify her findings from the lipid analysis. If the lipid results hold up, further work will be needed to understand how the microbes were able to consume so much oil without reproducing.

What are the longer-term impacts?

In a paper Edwards, Van Mooy, Reddy, and Camilli are submitting to a peer-reviewed journal, they coined the term “futile respiration” to describe the situation where microbes utilized a big carbon source even though they lacked other necessary nutrients and couldn’t put those calories to immediate use.

Van Mooy said he’s glad his hypothesis that the microbes would not eat the oil was wrong, because the microbes kept a lot of the oil from washing ashore. He stressed, though, that assuming that microbes will always clean up our messes is not a good way to think about future oil spills.

“The slick may have disappeared, but petroleum molecules entered the food web, and we don’t know what the long-term impact is going to be. So, if someone says, ‘the microbes ate it, no big deal’? First of all, the microbes didn’t eat every molecule. They probably left huge families of molecules behind, and those might be toxic. And in terms of the ‘no big deal,’ we don’t know what the deal is yet. It’s going to be decades before we figure it out, before the final toll is going to be apparent.”

This research was supported by the National Science Foundation.

Originally published: April 15, 2011

Last updated: July 28, 2014
