Woods Hole Oceanographic Institution

Cruise Planning Synopsis


KN219

Ship

R/V Knorr

Cruise Party

Patricia Quinn: Chief Scientist, Principal Investigator
Organization Name 7600 Sand Point Way NE Seattle, WA United States 98115
+1 206 526 6892
patricia.k.quinn@noaa.gov

Departure: May 20, 2014

WHOI

Arrival: Jun 5, 2014

WHOI

Operations Area

Northwest Atlantic
Lat/Lon: 31° 0.0′ N / 65° 0.0′ W
Depth Range: 0 / 2500
Will the vessel be operating within 200 NM of a foreign country? Bermuda, Canada
Are visas or special travel documents required? no

Science Objectives

Sea spray aerosol (SSA) impacts the Earth’s radiation budget indirectly by altering cloud properties including albedo, lifetime, and extent, and directly by scattering solar radiation. The overarching scientific objective of WACSII is to characterize the properties of SSA in its freshly emitted stated to improve model calculations of the climate impacts of SSA. In addition, simultaneous measurements of surface seawater will be made to assess the impact of ocean properties on SSA.

Science Activities

Core WACS II Activities

  1. To assess how ocean biogeochemistry impacts sea spray particles, measurements will be made in both high and low chlorophyll-a waters and relevant surface seawater parameters will be measured in situ. Freshly emitted sea spray particles will be generated using NOAA Pacific Marine Environmental Laboratory (PMEL)’s Sea Sweep particle generator which will be deployed over the  side of the ship next to the bow. Aerosol particles will be drawn from the Sea Sweep into the aerosol inlet located on top of AeroPhys van on the O2 deck. Aerosol will then be distributed to instruments in AeroPhys, AeroChem, Guest, and Russell vans.
  2. Characterization of surface ocean organic material to assess its influence on ocean-derived sea spray aerosol particles.  Uncontaminated seawater will be fed continuously to seawater van on the main deck and analyzed for fluorescence, particulate organic carbon (POC), and dimethylsulfide (DMS).
  3. Comparison of surface and subsurface seawater POC and DOC. CTD sampling of seawater at several depths will be performed to assess which portion(s) of the seawater carbon pool impacts the composition of SSA.
  4. Atmospheric sampling will be conducted continuously while the ship is in transit between Sea Sweep working areas. Atmospheric samples will be drawn into 20' high inlets mounted on top of the AeroPhys and Russell vans. Samples will be distributed from the two inlets to instruments in AeroPhys, AeroChem, Guest, and Russell vans.

Additional Info

Pre-cruise Planning Meeting: Teleconference

Stations:

Supporting documentation:

»WACS2_Haz_Mat_for_WHOI.xlsx
»WACS_Layout.pdf
»WACS2_personnel_for_WHOI.xlsx
»Berthing_Plan_Quinn.pdf
»QUINN__Vent_Removal_Notes_&_Photos.pdf
»Quinn_KNORR_van_layout_(3).pdf
»Quinn_Precruise_Agenda_KN219.pdf
»WACS_II_proposed_cruise_track_for_WHOI.pdf
Notes: Due to the complexity of the deck layout, vans are displayed on a seperate diagram from the other equipment.

Funding

Funding Agency: NSF
Grant or contract number: xxx
Funding Agency: NOAA
Grant or contract number: xxx

Scientific Instrumentation for R/V Knorr

Shipboard Equipment

Deionized Water System
Science Underway Seawater System
Fume Hood

Shipboard Communication

Is there a need to transfer data to shore on a regular basis?
Basic Internet access via HiSeasNet

CTD/Water Sampling

Wet Labs ECO-AFL fluorometer
911+ Rosette 24-position, 10-liter bottle Rosette with dual T/C sensors

Critical CTD Sensors

MET Sensors

Barometric Pressure
Air temperature
Precipitation
Relative Humidity
Wind speed and direction
Short Wave Solar Radiation

Sample Storage

Chest Freezer (Household type) 0°F
Storage Notes:

Navigation

Will you be using Long Base Line (LBL) navigation? no
How many nets? null
How many tansponders? null
Will you be using Doppler/GPS navigation?no

Navigation

GPS
Navigation Notes:

Winches

CTD Winch with .322" Electro-mechanical wire
Winch Notes:
Wire Notes:

Standard Oceanographic Cables

Slip ring required? no Number of conductors:
Non-standard wire required? no Type:
Traction winch required? no Describe:

Specialized Deck Equipment

Mooring Deployment/Recovery Equipment Required: no Type:
Cruise Specific Science Winch Required: no Type:
Nets Required: no Type:

Over the Side Equipment

Will you be bringing any equipment (winches, blocks, etc.) that lowers instruments over the side? yes
Details:

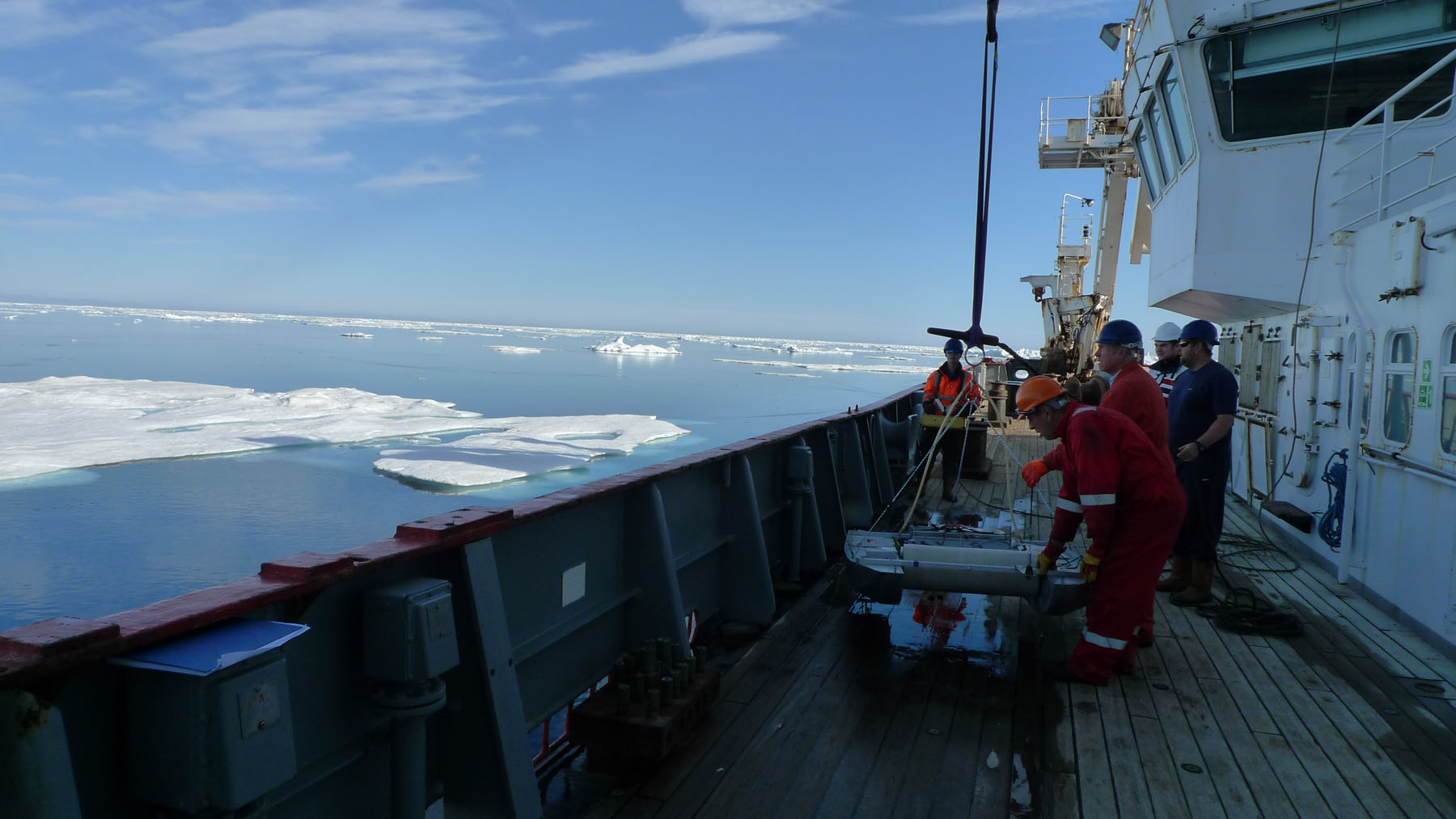

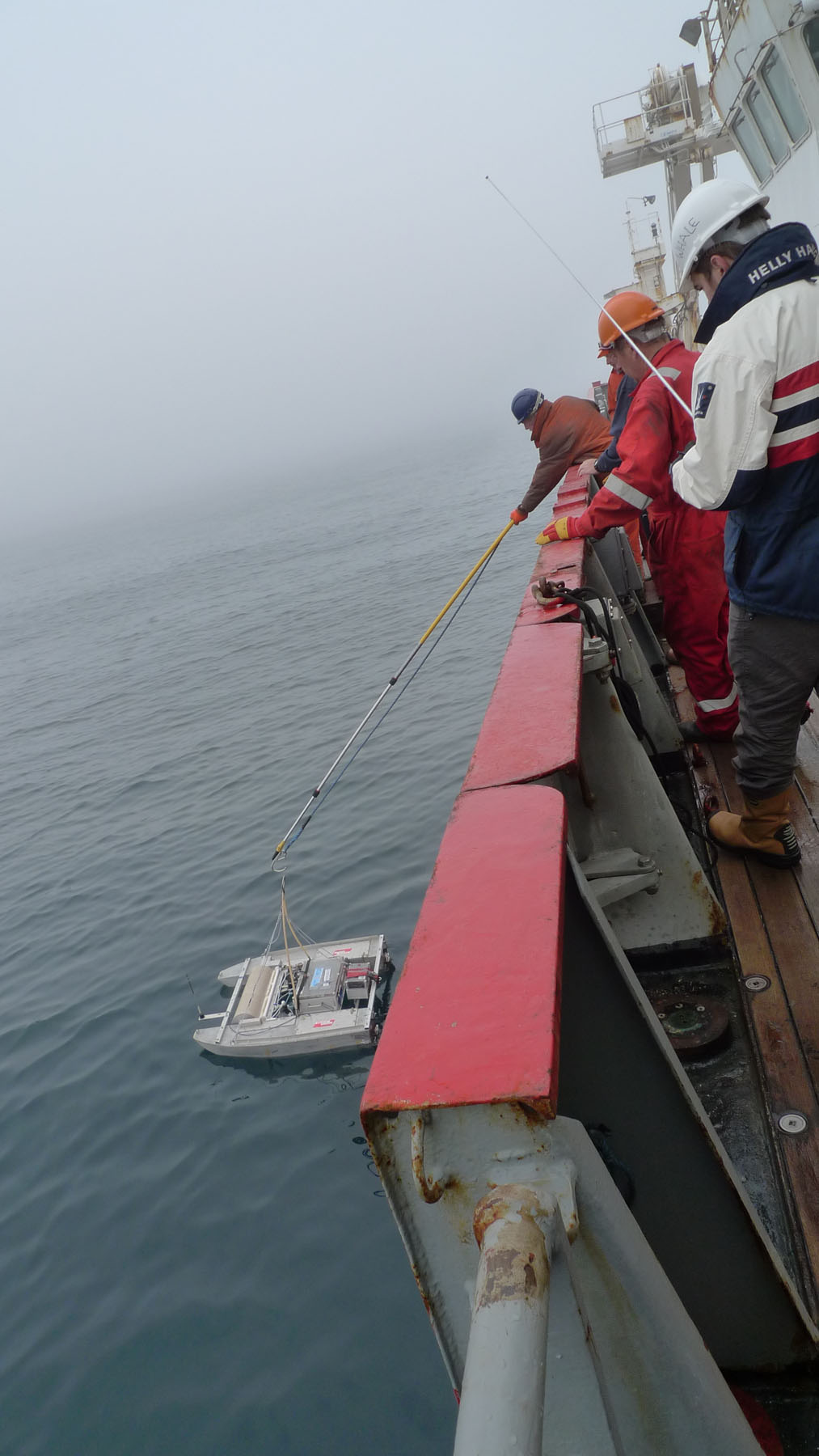

Sea Sweep will need to be lowered over the side of the ship with the ship's crane. It is deployed from the stern then pulled along side the ship to the bow. Ideally, it is deployed on the side of the ship that has minimal discharges.

Special Requirements

Elecrical Power: yes Identify: Power for vans O2, O1, and main decks.
Equipment Handling: yes Identify: Deployment of Sea Sweep
Inter/intraship Communications: no Identify:
Science Stowage: no Identify:
Water: yes Identify: Uncontaminated seawater

Additional Cruise Items/Activities

Explosive Devices:no
Portable Air Compressors:no
Flammable Gases:no
Small Boat Operations:no
SCUBA Diving Operations:no

Hazardous Material

Will hazardous material be utilized?yes
Describe deployment method and quantity:

Gas tanks

We will have around 30 gas tanks.

10 of the tanks are He that can be stored on the main deck.

9 will be used in AL Van on the O1 deck so we need rack storage there (I think most can fit in the van foyer). The rest will be in labs.

Radioactive Material

Radioiosotopes:no

Additional Information

Is night time work anticipated on this cruise?yes
Specialized tech support (Seabeam, coring, other):
Deployment or capture of Sea Sweep
Other required equipment and special needs:

Checklist & Notes

Checklist

U.S. Customs Form: yes
Diplomatic Clearance: yes
Date Submitted: Dec 16, 2010
Date Approved:
Agent Information:
PORT EVERGLADES:

Master R/V Knorr
Attn: Scientist's Name - KN200-4
Wilhelmsen's Ship Services
8030 N.W. 77 Court
Medley, FL   33166

Contact:
Edwin Delgado
Marine Manager
North America
Tel: 305-883-3829
Fax: 305-675-9260
Mobile:305-586-4803
Email: 'edwin.delgado@wilhelmsen.com'

AGENT NOTE: For all reply emails please use the following email address:
wss-mia-shipsagency@wilhelmsen.com  unless yourequire personal & confidential communication then please reply to 'edwin.delgado@wilhelmsen.com'

WHOI NOTE:  Agent and WHOI contacts should be copied on all communications.  It is requested that shipment information of any equipment be communicated to the Agent and WHOI contacts
Countries:
Notes:
Bahamas check in possible.
Isotope Use Approval: no
Isotope Notes:
SCUBA Diving: no

Checklist

SSSG Tech:
Amy Simonneau and Anton Zafero
- MOB Sunday Apirl 10 - Apirl 12.
U.K. Mooring group will have 8 containers delivered to dock for unloading.  One 20 foot contiainer will be loaded, the rest unpacked by forklft.

- Double (vertical) capstan winch will be welded to their own deck plates on Monday April 11 by outside vendor already set up.

- TSE with tip plate to be loaded on main deck as back up winch

- UNOLS lab van on 01 deck to be used by NOAA group on cruise for O2 and Salts

- NOAA / UM is bringing their own CTD rosette for cruise.
Knorr will need to check into the Bahamas for reserach clearance.
Marsh Harbor is the prefeed location.  On or about April 15.
