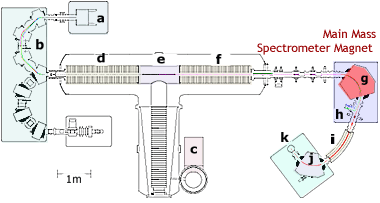

| g. Main Mass Spectrometer Magnet | » Next to h. |
| The main mass spectrometer magnet of the system bends the (3+) carbon ions 110° to the right. Here the three isotope beams are separated by mass, 14C encounters the least amount of deflection, 12C the most. | |
