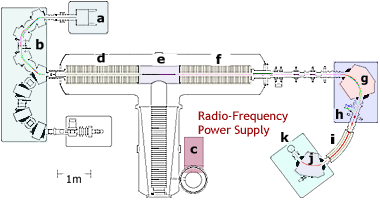

| c. Radio-Frequency Power Supply | » Next to d. |
| A solid state radio-frequency power supply provides charge to the center piece of the accelerator, the terminal (e). DC voltages over +2.5 million Volts can be reached using a capacitatively fed stack of 1,600 high-voltage diodes. | |
