DATA FROM LEO-15 WHOI-DALHOUSIE Sediment
Transport Sensor Frame

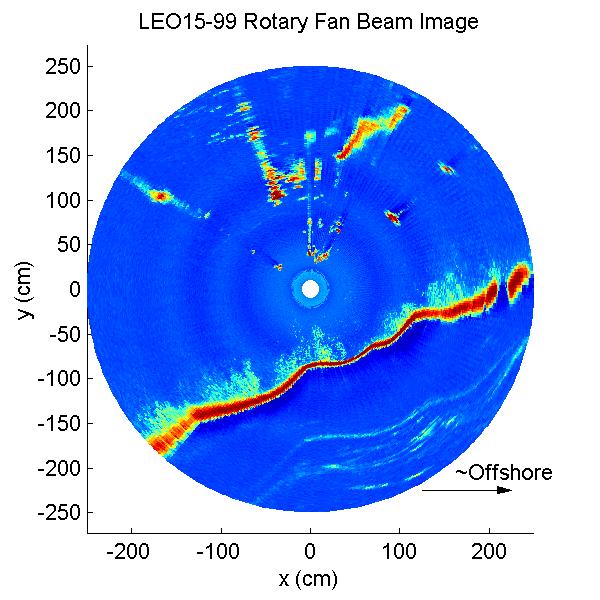

Rotary Sidescan Sonar Image
of the Seafloor
Shows
the planform of ripple morphology. Bright colors are surfaces facing towards
the sonar.
Vertical Pencil Beam Sonar Image
A vertical slice of
sonar imagery showing the bedform profile along a line and puffs of suspended
sediment.

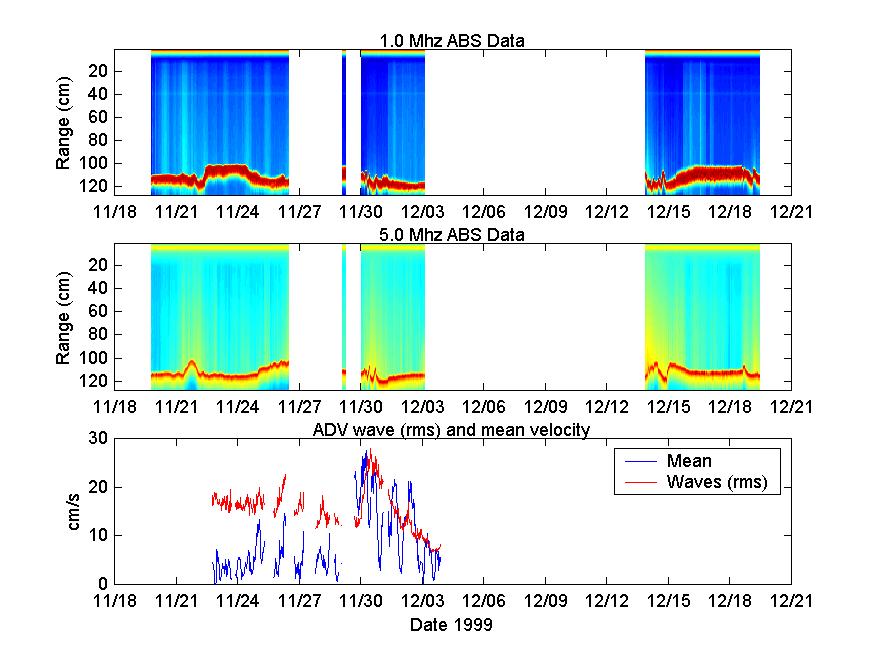

Burst Averged ABS data Image
(1.0 and 5.0 Mhz from the
entire deployment). Note the two frequencies were 35-40 cm apart so elevation
is out of phase
MPEG Movies showing Vertical
Pencil Beam, Fanbeam and ABS data:
Period 1: 11/20:16 to 11/27:00 3Mb
Period 2: 11/27:00 to 12/04:00 1.1Mb
Period 3: 12/04:00 to 12/20:00 2.8Mb
