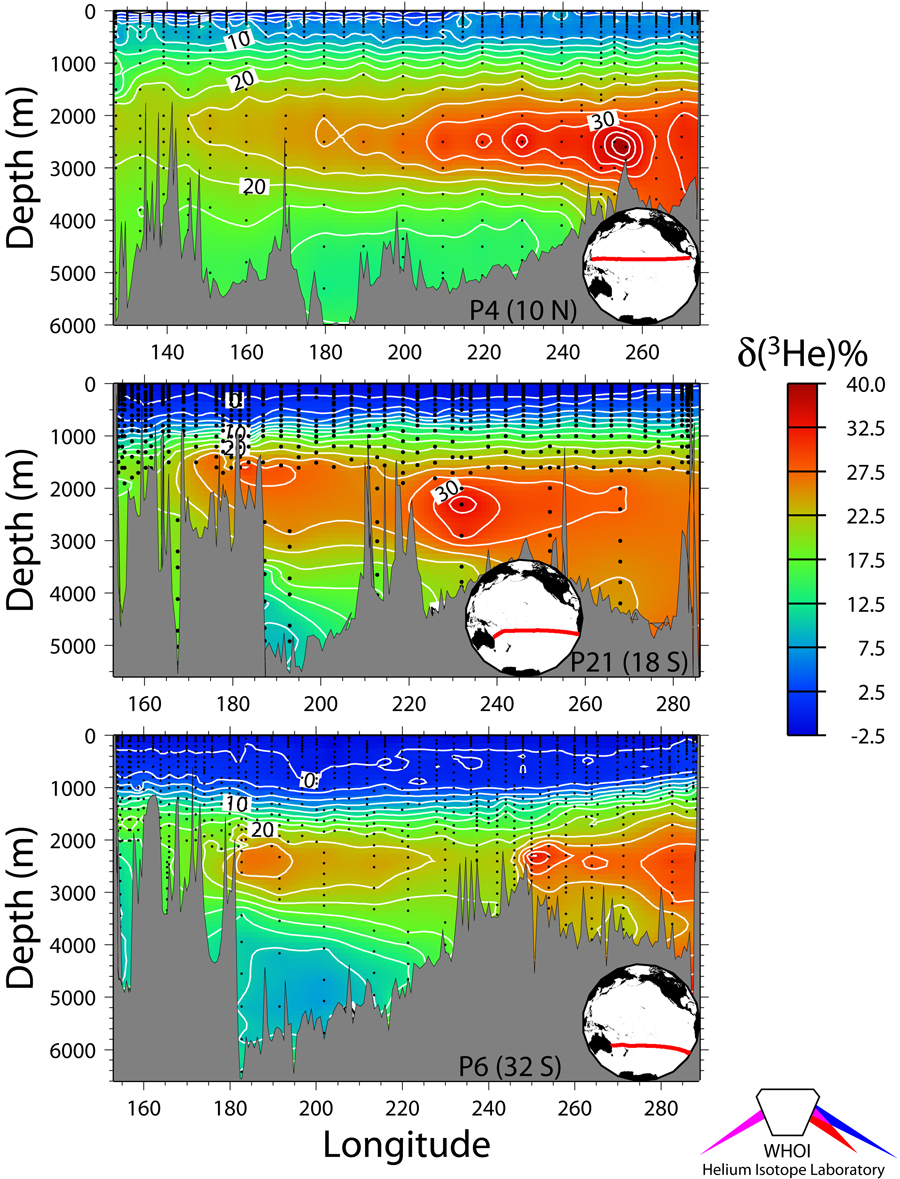

Three zonal sections versus depth in the Pacific showing the extent of tongues of 3He emerging from seafloor hydrothermal volcanism along the East Pacific Rise. The data are expressed as isotope ratio anomaly (the percentage deviation from the atmospheric ratio). The samples were taken and analyzed during the WOCE expeditions.
