REMUS 6000

Deep Ocean, Large Area Search/Survey

The REMUS 6000 is an innovative, versatile research tool designed to operate in depths ranging from 25 meters (82 feet) to 6,000 meters (19,685 feet or 3.73 miles), allowing for a wide range of autonomous operations.

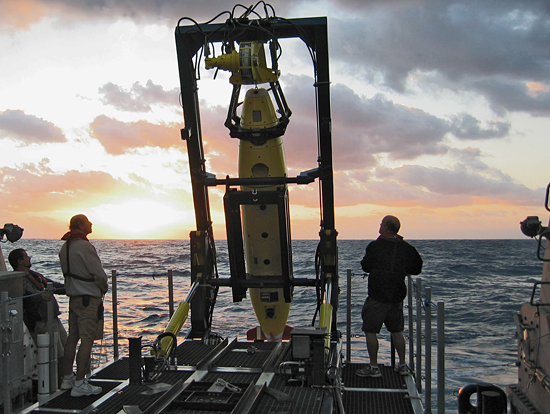

The REMUS 6000 —the largest of the REMUS vehicles— provides ample space and power for even the most challenging applications. The AUV has the ability to travel farther, go deeper, and carry a more complex set of sensors, but it boasts the same proven software and electronic subsystems found in the highly successful REMUS 100 AUV. The vehicle’s launch and recovery system is designed to function off the stern of a ship and can be set up for shipboard operations within a few hours.

This efficient AUV can be used for numerous exploration and mapping purposes, including hydrographic surveys, environmental monitoring, debris field mapping, search and salvage operations, and scientific sampling and mapping.

The vehicles use acoustic navigation to independently survey an area, while sensors sample and record data. After data from a large-scale survey is analyzed and smaller fields of interest are identified, the REMUS 6000 can gather more detailed, up-close images using high-resolution imaging systems located on the bottom of the vehicle.

The REMUS 6000 was designed under a cooperative program involving the Naval Oceanographic Office, the Office of Naval Research, and the Woods Hole Oceanographic Institution (WHOI) in support of deep-water autonomous operations.

Specifications

Vehicle Diameter: 71 cm/28 in
Vehicle Length: 3.84 m/12.6 ft
Weight in Air: 862 kg/1900 lbs
Max Operating Depth: 6000 meters/19,685 ft/3.7 miles
Energy: 11 kWh rechargeable Li-ion battery pack
Endurance: Mission duration of up to 22 hours
Propulsion: Direct drive DC brushless motor to an open 2-bladed propeller
Velocity Range: Up to 2.6 m/s (5 knots)
Control: 2 coupled yaw and pitch fins; altitude, depth, yo-yo, and track-line
Tracking: Emergency transponder, mission abort, ascent weight drop, Iridium, GPS
Communications: Acoustic modem, Iridium, 802.11B Wi-Fi


Navigation

Inertial Navigation Unit (INU)
Consists of accelerometers and gyros which measure the vehicle’s movement in three directions (surge, sway, heave), and three rotations (roll, pitch, yaw), just like an airplane or a rocket to determine the vehicle’s velocity and current mission travel distance.

Integrates data from other instruments to calculate a “best estimate” of the vehicle’s actual location.

Acoustic Doppler Current Profiler (ADCP)
Uses pulses of sound bounced off of the seafloor to determine the vehicle’s altitude and ground speed.

Pencil-Beam Sonar Collision Avoidance System
Uses pulses of sound sent in the direction the vehicle is headed that bounce off of obstacles in its way, determining the need for evasive action to maneuver around an obstacle.



Communications

Upper and Lower Long Baseline Transducers
Communicates through “pings” with pre-laid Deep Ocean Transponders (DOTs) to determine the vehicle’s location relative to its pre-programmed route.

Enables shipboard ops to send and receive data from the vehicle via multiple pulses similar to morse code.

Allows for clear communications in any vehicle position via either the upper or lower instrument.

Acoustic Modem Transducer
Enables shipboard ops to send data to the vehicle via multiple pulses similar to morse code.

GPS/Iridium/Wi-Fi Antenna
Consists of a 3-way antenna that allows the vehicle, when at the surface, to determine its position using GPS.

Connects the vehicle’s system to the shipboard computer via a WiFi connection, or Iridium satellite phone connection.

Enables the vehicle to “phone home” with its location, if it becomes lost.



Survey Instruments

Dual-frequency Side-Scan Sonar
Consists of two arrays of transducers (underwater speaker/microphones) that look out and down on either side of the AUV.

Illuminates the seafloor via sound waves, using “pings” to assemble a 2D image of the seafloor and the objects resting on it.

Custom Digital Camera w/Strobe Light
Snaps digital photographs when the vehicle is within 10 meters of the seafloor, synced with strobe light just like a flash bulb on a typical consumer camera.

Tags photos with position and time and stores them in an onboard hard drive, download-able at the surface.

Multibeam Profiling Sonar Consists of multiple sonar beams which “ping” the seafloor at different angles, creating a 3D image of its contours and shape.

Sub-Bottom Profiling Sonar
Uses a powerful sound beam to look at what’s buried under the sediment on the seafloor.

Conductivity, Temperature, and Depth Sensor (CTD)
Measures conductivity (the saltiness of the water), water temperature, and vehicle depth.



Structure

Vehicle Frame and Foam Hull
The titanium internal spine (called a strongback) provides structural support and a frame to which all the instruments, motors and electronics are secured in water-tight, pressure-resistant metal cans.

The outside hull consists of large blocks of syntactic foam (in yellow) that provide flotation, are impenetrable by water and do not crush at depth under extreme pressures.

Lifting Bail
Provides a safe structural lifting point for pulling the vehicle out of the water.

Propulsion/Propeller Shaft
Provides precision thrust and direction capability to steer the vehicle.

Electronics and Battery Compartment
Holds the vehicle computer and its lithium-ion batteries that provide a rechargeable, lightweight and efficient power source.

Recovery Strobe Light
Supplies a bright, blinking white light for nighttime vehicle recovery operations.
