Larvae in Pumps

  Email    Print  PDF  Change text to small (default) Change text to medium Change text to large

Enlarge image

Larvae in pumps
Sampling Larvae in Pumps

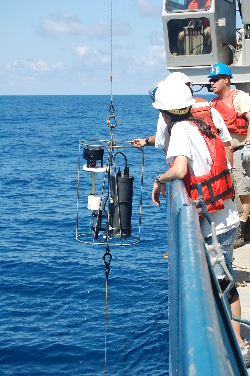

We used high-volume water samplers (McLane WTS-LV)  to collect larvae of vent species and other plankton near the ridge.  The samplers were equipped with 50-L pump heads, and 63 mm mesh filters.  Pumps were deployed on pairs of moorings during LADDER-1 and LADDER-2 cruises.  On LADDER-1, one mooring of each pair was located within the axial trough near an active, colonized vent and the other roughly 100 m off axis to the east.  On LADDER-2, the second mooring was located within the axial trough, but at least 100 m away from active vents.   On each mooring, the lower pump was positioned at 3 m above bottom (mab), and the upper pump at 75 mab, roughly the height of the neutrally buoyant plume (except at K vent where the plume was higher, and the upper pump positioned at 139 mab).  The pumps typically sampled for 24 hrs, resulting in sample volumes of ~40,000 L.

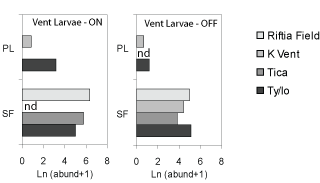

Fig. 1. Larval vertical distributions, November 2006
Abundance (ln transformed) of vent larvae in 40,000-L pump samples near seafloor (SF) and in neutrally buoyant plume (PL) at 4 vent sites (ON): Riftia Field, K Vent, Tica and Ty/Io, and at corresponding sites 100 m off axis (OFF)
Plots of individual species: (page 1) (page 2) (page 3)

Fig. 2. Larval vertical distributions, December 2006
Abundance (ln transformed) of vent larvae in 40,000-L pump samples near seafloor (SF) and in neutrally buoyant plume (PL) at 3 vent sites (ON): Riftia Field, K Vent, and Tica, and at nearby sites 100 m away along the axis  (AWAY)
Plots of individual species: (page 1) (page 2) (page 3)

Larval distributions

Related Files
» pump_2006_nov_spp_1.pdf
» pump_2006_nov_spp_2.pdf
» pump_2006_nov_spp_3.pdf
» pump_2006_dec_spp_1.pdf
» pump_2006_dec_spp_2.pdf
» pump_2006_dec_spp_3.pdf
