REMUS 3000

Mid-Ocean Depth, Data Collection Platform

  Email    Print  PDF  Change text to small (default) Change text to medium Change text to large

REMUS 3000 AUV

Enlarge Image

Mechanical drawing image of our newest AUV, REMUS 3000, currently being constructed out of titanium in our laboratory.


Titanium, auv

Enlarge Image

Raw titanium pictured prior to being machined for hull sections for the REMUS 3000 AUV.



The REMUS 3000 is similar to the REMUS-600 in vehicle size, however this vehicle, constructed out of titanium, can swim to much deeper depths and it carries a more advanced sensor package for underwater mapping and imaging.  Two vehicles are currently being engineered in our lab and will contain dual frequency Edgetech sidescan sonars for high resolution sonar imagery and dual digital camera systems for maximum coverage and mutlidimensional image mapping.  The REMUS-3000s will also have inertial navigation systems (Kearfott T-24), phased array ADCPs, Imagenex pencil beam forward looking sonars, optical backscattering sensors, conductivity, temperature and pressure sensors.

Vehicle Specifications
Diameter/length 14 in/146 in
Weight 335 kg (740 lbs.)
Max depth 3000 meters (1.86 miles or 9842 feet)



REMUS 3000 Capabilities

The REMUS 3000 is 14 inches in diameter and just over 12 feet in length. Constructed mostly of titanium, it weighs 760 pounds.  The vehicle is outfitted with dual edgetech sidescan sonar with frequencies 120 kHz and 410 kHz and dual digital still cameras for accurate target location and identification.  For clearer imaging, it contains high power LEDs with reflectors, variable pulse length which is spectrally matched to water.

The vehicle's navigation capabilities include a Kearfott T-24 inertial navigation system coupled with GPS, and (LBL) Long Baseline Acoustic navigation for highly accurate bottom tracking/mapping and target detection.

REMUS-3000 is also outfitted with a Neil Brown Conductivity/Temperature sensor, a Paroscientific Pressure Sensor and an Imagenex Pencil Beam Forward Looking Sonar.

Like most of the REMUS AUVs, the 3000 communicates through Wi-fi, Ethernet, Iridium and ACOMMS (underwater acoustics).

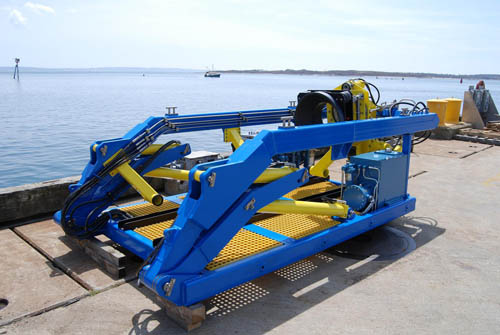

For safer launch and recovery, the 3000 has a descent weight dropper, ascent weight dropper and a recovery float/line release.




REMUS-3000 Endurance Predictions
Settings @ 3 knots @ 4 knots
All sensors off 77 hours, 231 nmi 44 hours, 176 nmi
Sonar on 56 hours, 168 nmi 37 hours, 148 nmi
Sonar & Camera/Strobe on 49 hours, 147 nmi 33 hours, 132 nmi
