ABE—The Autonomous Benthic ExplorerWHOI's deep-diving vehicle makes Wired magazine's robotic hall of fame |
|
|
 | |  |
|
| Enlarge ImageCrew members recover ABE aboard R/V Atlantis after a dive to detect hydrothermal vents on the Galápagos Rift in 2002. (Photo by Dana Yoerger, Woods Hole Oceanographic Institution) |
|
|  |
|
| Enlarge ImageABE can image the seafloor in a variety of ways on a variety of scales. A bathymetric map from the Lau Basin off Fiji covers an area of about 0.6 by 0.37 miles (1 by 0.6 kilometers), showing mounds, fissures, and hydrothermal vent spires with a resolution of about 3 feet (1 meter). (Courtesy of Dana Yoerger, Woods Hole Oceanographic Institution) |
|
|  |
|
| Enlarge ImageA photomosaic taken by ABE of a smaller area from the Lau Basin shows geological details and individual animals, such as clams, mussels, and snails. (Courtesy of Dana Yoerger, Woods Hole Oceanographic Institution) |
|
|  |
|
| Enlarge ImageBefore ABE’s first deployment, ABE’s inventors, Al Bradley (left) and Dana Yoerger tested the autonomous underwater vehicle in the test well at the WHOI dock in Woods Hole. (Tom Kleindinst, Woods Hole Oceanographic Institution) |
|
|
Related Multimedia |
|

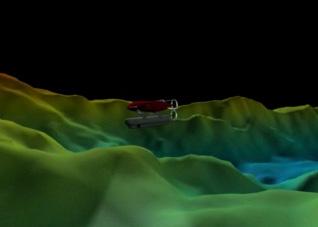

ABE Animation
Maintaining a constant altitude and precision navigation, ABE is programmed to fly back and forth over the seafloor (which scientists call "mowing the lawn"), surveying the seafloor with sonar to create high-resolution bathymetric maps.
Tim Silva, Woods Hole Oceanographic Institution | » View Video (Quicktime)
» View Video (Media Player)
|
|
|
|
|
Related Links |
|
|
“Mars may belong to the rovers, but the oceans belong to the Autonomous Benthic Explorer.”
With those words, Wired magazine enshrined Woods Hole Oceanographic
Institution’s deep-sea autonomous underwater vehicle (AUV) among its
“50 Best Robots Ever” in January 2006. The magazine’s
editors—alternating between tongue in cheek and feet firmly on the
ground—compiled their favorite real and fictional robots. The
Autonomous Benthic Explorer, nicknamed ABE, came in at No. 32. That was
one below GM Unimate, a robotic arm that revolutionized the assembly
line in 1961, and two below the Tin Woodman from The Wizard of Oz.
The list contained cinematic robotic stars such as HAL 9000 (the calmly
murderous computer in 2001: A Space Odyssey), R2-D2 of Star Wars fame,
and the Terminator. But it also included the Mars rovers, life-saving
medical devices, and military equipment such as Predator unmanned
aerial vehicles and tank-treaded Packbot reconnaissance droids.
The designation tickled Al Bradley, Dana Yoerger, and Barrie Walden,
who designed and built a prototype deep-submergence AUV in 1995. These
were the same guys, after all, who saw their real-life robot’s
coincidental resemblance to the Starship Enterprise and playfully
stenciled on ABE’s flank “NCC-1701B”—the same numbers that adorned the
fictional Star Trek spaceship.
Launched in 1995, the one-of-a-kind ABE has come of age. “It’s
revolutionized how we look at the seafloor,” said Dan Fornari, director
of WHOI’s Deep-Ocean Exploration Institute.
To boldly go where no AUV had gone before
But ABE’s story had more modest beginnings. Originally, Walden, head of
the group that operates WHOI’s human-occupied submersible Alvin,
noticed that scientists increasingly were requesting Alvin dives to
return to seafloor sites to see how they had changed. He asked Bradley
and Yoerger to “build something that descends to the ocean, takes a
picture, docks and goes to sleep, and then wakes up and goes back to
take more photos,” Bradley said. The goal was to give geologists and
biologists a series of photos over time, while saving Alvin for
missions only it could do.
Bradley and Yoerger contemplated the request. “What if this device
could hold its position near the seafloor?” Bradley said. “And what if
we give it some thrusters so that it can move along the bottom? Why not
have it go out on a line, find its homing beacon, then come back, and
then go out on another line, like the spokes of wheel, so that you can
survey a 50-meter circle, rather than just one place? This was an
incredible step beyond the first concept. We had never built a device
like that before.”
Bradley and Yoerger designed a vehicle that could be programmed to
steer on a preselected path, navigating by acoustic beacons placed on
the seafloor. It had three torpedo-shaped compartments connected in a
triangle by struts. The design gave ABE a stable center of gravity that
would prevent it from rolling from side to side or pitching forward or
back. The lower pod contained ABE’s computer brains and batteries. The
two upper pontoons contained glass balls to provide buoyancy.
They gave ABE five thrusters to propel it up and down, as well as
horizontally. They programmed ABE to automatically adjust its position
to maintain the same altitude above changing seafloor topography. If
ABE’s sonar detected a cliff ahead, it would stop, rise, and fly over
the cliff, following seafloor contours and lowering itself back to the
same altitude on the other side.
“If most AUVs are airplanes, ABE is a helicopter,” said science writer Kristen Kusek in Marine Scientist magazine.
The first test
By 1995, Bradley and Yoerger had tested ABE in Woods Hole harbor and
were looking for an opportunity to test it in the deep ocean. An offer
came from WHOI geophysicist Maurice Tivey, who was scheduled to co-lead
a cruise to the Juan de Fuca Ridge off the U.S. Pacific Northwest.
“Why don’t we try out ABE?” Tivey said. “Let’s get it wet.”
Tivey wanted to measure the magnetic intensities of rocks on a newly
erupted seafloor lava flow. He had planned to use the standard method
of towing a magnetometer on a wire above the seafloor.
“The lava flow is a relatively small feature,” Tivey said. “The ship
has to make big circles around the lava flow, dragging the maggie on a
wire several kilometers long. You don’t have much control.”
With its steady, low-flying ride and precise navigation, ABE flew
straight lines back and forth over the lava flow. “It was like mowing
the lawn,” Tivey said. “ABE collected the data in a few lines.”
What began as an engineering test piggybacked onto a scientific cruise
turned out to produce exciting new data. By superimposing ABE’s
magnetic measurements on ocean-bottom maps made by ABE’s sonar sensors,
Tivey could distinguish the extent, volume, and timing of individual
lava flows on the seafloor.
“That’s when I realized that ABE could be a superb deep-submergence surveying tool,” Tivey said.
“That cruise made us switch our thinking,” Bradley said. “We said,
‘Let’s not just put ABE down and dock it. Let’s get that thing right
back up to surface after a dive, get out the data, recharge its
batteries, and send it back down as fast as we can.’ That way we could
get much more data and cover much more ground.”
Good reviews
ABE evolved quickly after that, as scientists began to plug different
sensors into the vehicle. In 1999, on a cruise co-led by Marie-Helene
Cormier and William Ryan of the Lamont-Doherty Earth Observatory, ABE
“mowed the lawn” on the East Pacific Rise, using sonar to map the
seafloor, a camera and strobe light to take photographs, and other
instruments to measure the temperature and turbidity of seawater.
With the latter tools, scientists discovered hydrothermal vents that
Ryan said they would not have found otherwise. He was also ecstatic
about the quality and detail of ABE’s seafloor mapping, calling the
cruise “a milestone event” for the field of marine geology and
geophysics.
“This new technology will unquestionably advance our science,” Ryan
said in an e-mail even before the ship docked. “It not only gives us a
better view, but we see things that we have never been able to
visualize before.
“So please tell everyone that this is not just the polite letter at
cruise end that everything worked fine,” Ryan continued, “but that your
Deep-Submergence Laboratory and ABE group have created and now
test-proven an extraordinary new tool.”
Cutting ABE's cords
The 1999 cruise launched ABE on a new career as scout and bloodhound,
searching for hydrothermal vents. These active volcanic seafloor sites
emit chemical-rich fluids that sustain exotic communities of life, and
so they intrigue geologists, chemists, and biologists. But locating
tiny, isolated vent sites along the globe-spanning mid-ocean ridge is
akin to finding buttons in a pitch-black attic.
The vents, however, leave a trail. They emit hot, buoyant,
particle-filled fluids that rise several hundred meters above the
seafloor and spread out into large mushroom-shaped plumes. That’s where
ABE comes in, using its thermal, chemical, and optical sensors to
“sniff” out plumes. Over 15 to 30 hours, ABE can cover a lot of
territory, about 18 to 37 miles (30 to 60 kilometers).
A 2000 cruise to the East Pacific Rise tested the “A” for autonomous in
ABE when its inventors cut the umbilicus. “We put ABE over the side,
and R/V Atlantis headed 30 miles away to work at another site,” Fornari
said. “When we finished, we drove back to the spot where ABE was
supposed to surface, and there it was, waiting like a patient pup for
its master to return.”
On a 2002 cruise to the Galápagos Rift, ABE showed its value working in
tandem with other vehicles. Within two hours after ABE resurfaced from
an all-night surveying mission, Yoerger could download data, create
fresh seafloor maps of the area, and hand them to Alvin pilots about to
descend to the seafloor.
“It was like hiking with a good topographic map,” said Portland
State University microbiologist Anna-Louise Reysenbach, who dived in
Alvin on the Galápagos cruise.
ABE's progeny
On each new cruise, ABE continues to demonstrate its versatility. In
2004, in the Lau Basin off Fiji, it first flew 820 feet (250 meters)
above the seafloor, into a vent plume, and homed into the vent.
(“Imagine flying at night through smog over a city to find the
smokestack that’s producing it,” Yoerger said.) On successive dives,
ABE descended to 165 feet (50 meters) to make a high-resolution
seafloor map. Then, it hovered a few meters above the vents, taking
high-resolution photos.
In the past, researchers often needed several cruises to find plumes
and then return trips to home in on vents, said Chris German, the new
head of the National Deep-Submergence Facility at WHOI. Using ABE on a
2005 cruise to the South Atlantic, German said, “I came home after the
cruise and could say, ‘We found a new vent site, and here’s exactly
what it looks like.’ ”
ABE has come of age, and not only because of its designation in Wired.
Having proved the value of deep-sea AUVs, the ABE Group has built a
faster, more maneuverable, more economical, easier-to-operate AUV—the
son of ABE. This next-generation AUV, called Sentry, is scheduled for
its first deep-sea baptism later this month.
— Lonny Lippsett
The National Science Foundation funded the
development of ABE and several ABE cruises. The National Oceanic and
Atmospheric Administration also funded some ABE cruises and some
additional technology development, as did the Comer Science and
Education Foundation.
