Ice Tethered Profiler 10 Data

Data from ITP10 deployed in September 2007

Last buoy status on 2008/5/24 230015 UTC : temperature = 1.53 °C, battery = 11.18 V

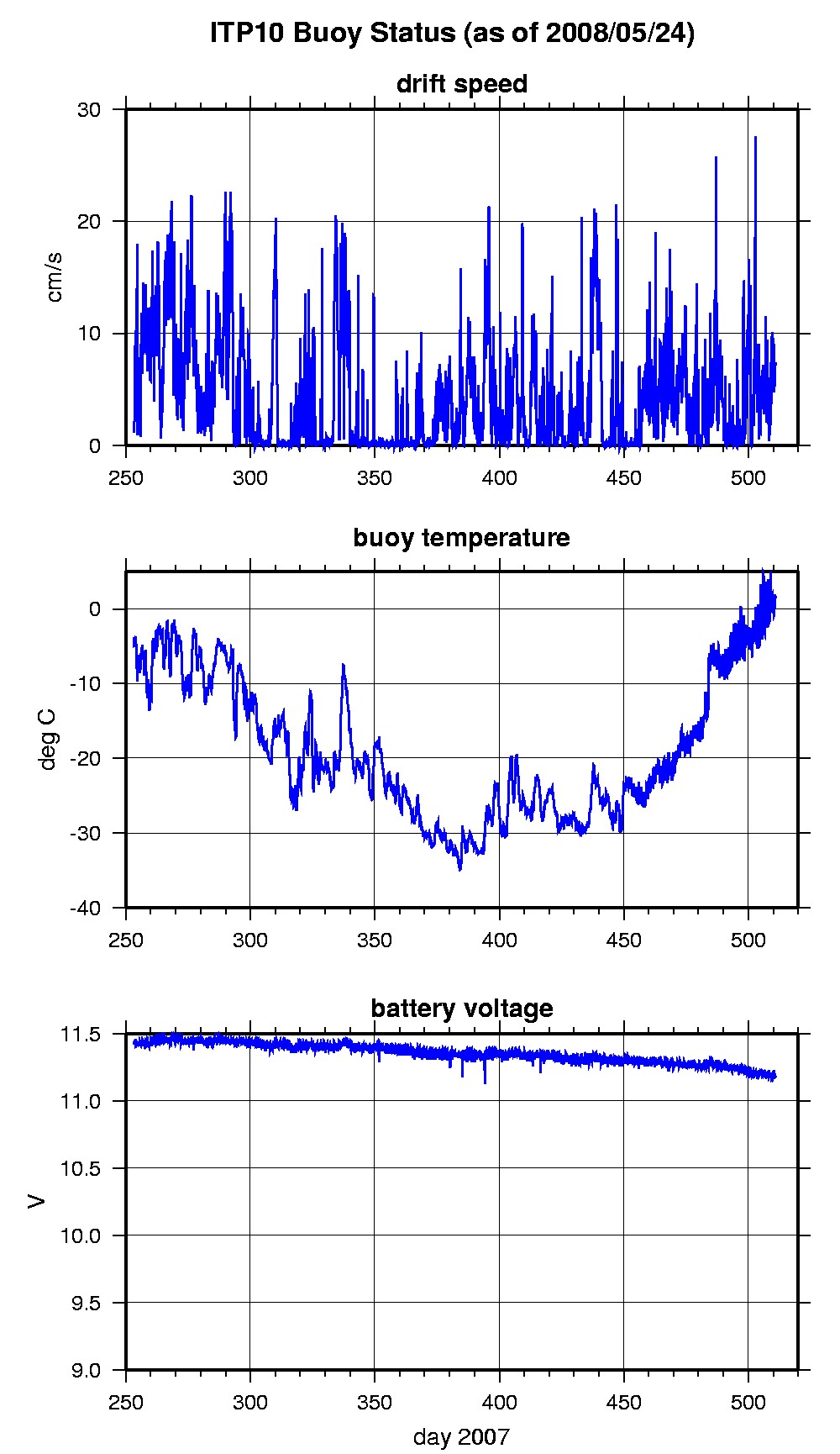

Plot of ITP Buoy Status

Last position on 2008/5/24 230016 UTC : 83.5601° N, 110.7764° W

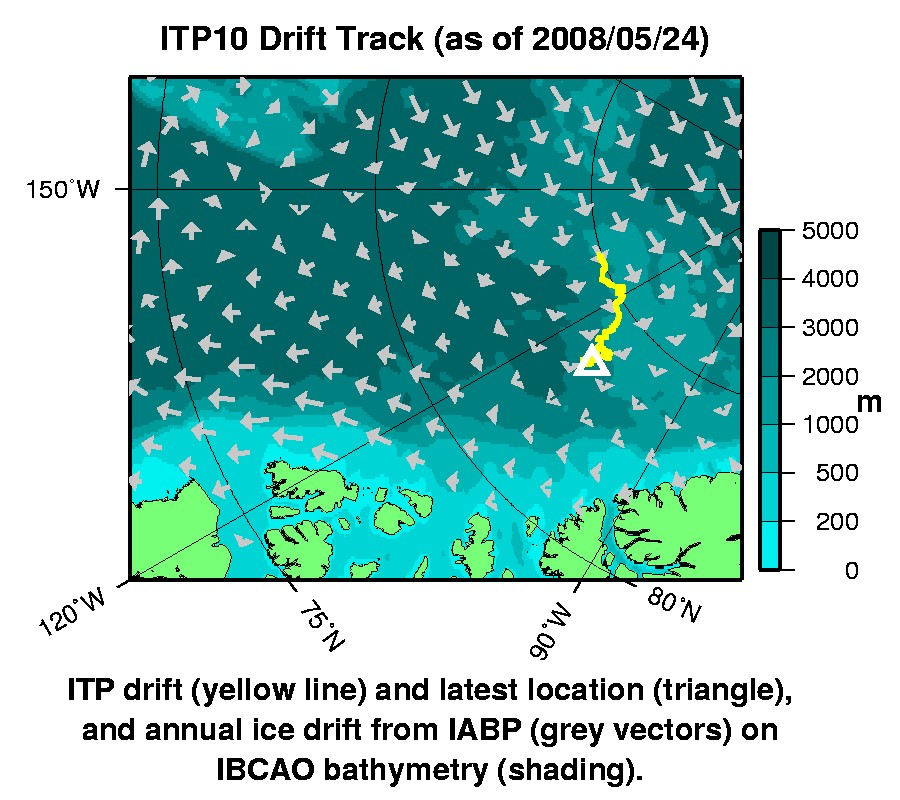

Plot of ITP Locations

Last profile (number 537) on 2008/5/25 712 UTC

Last profile mean motor current = 70.3835 mA, mean battery = 10.3033 V

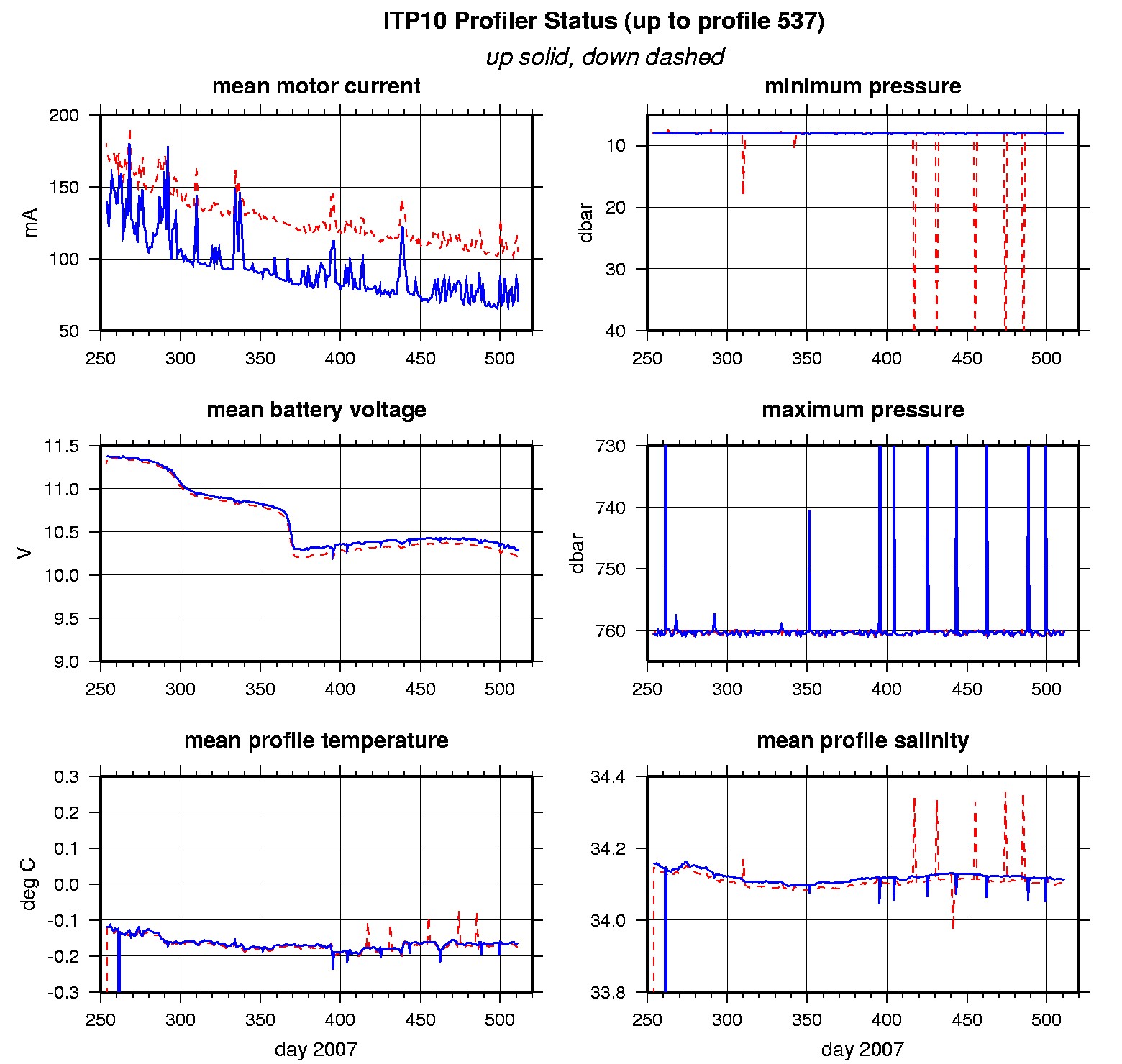

Plot of ITP Profiler Engineering Data

Last profile depth: minimum = NaN, maximum = NaN m

Last profile temperature: minimum = NaN, maximum = NaN °C

Last profile salinity: minimum = NaN, maximum = NaN

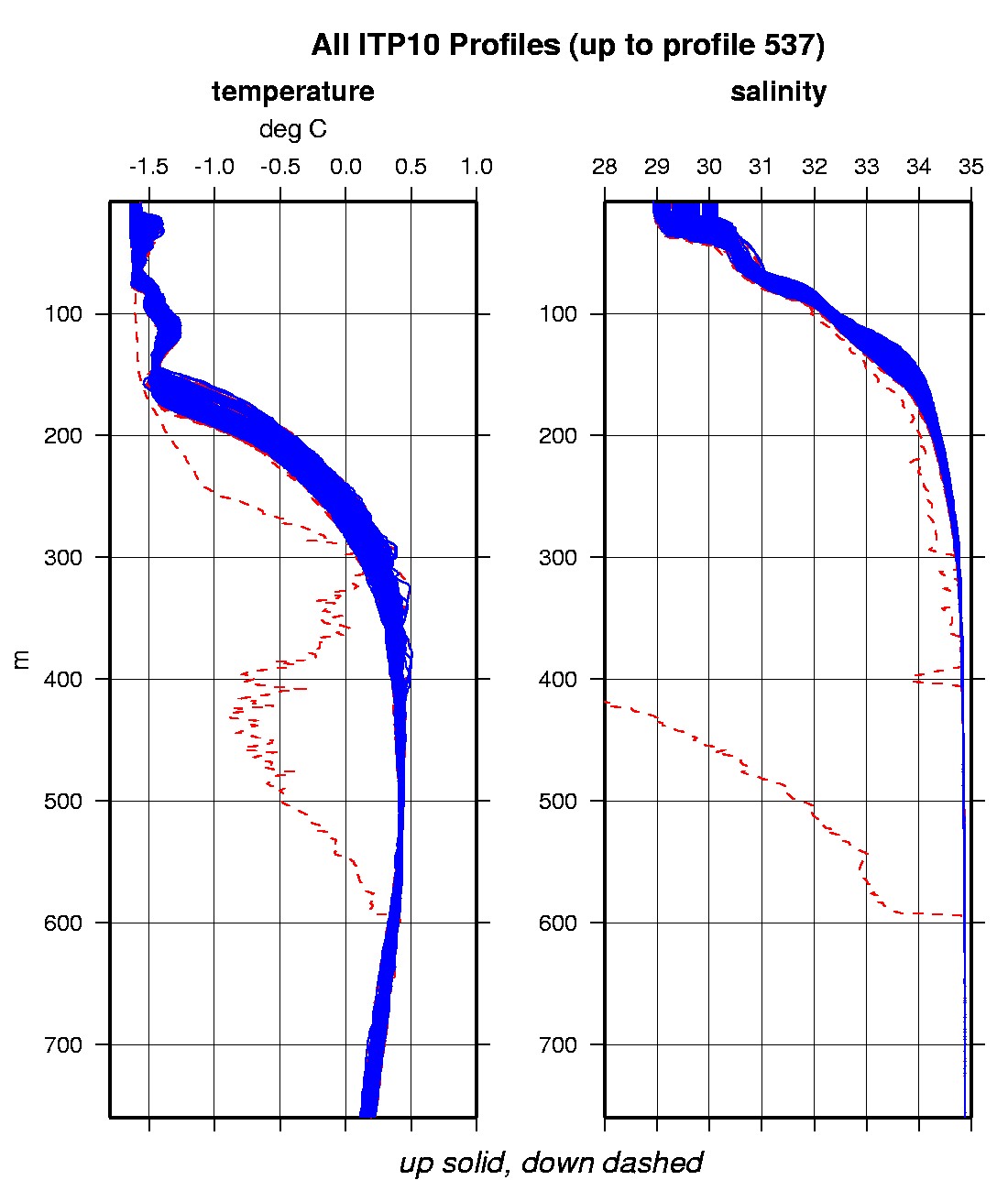

Composite Plot of ITP T & S Profiles

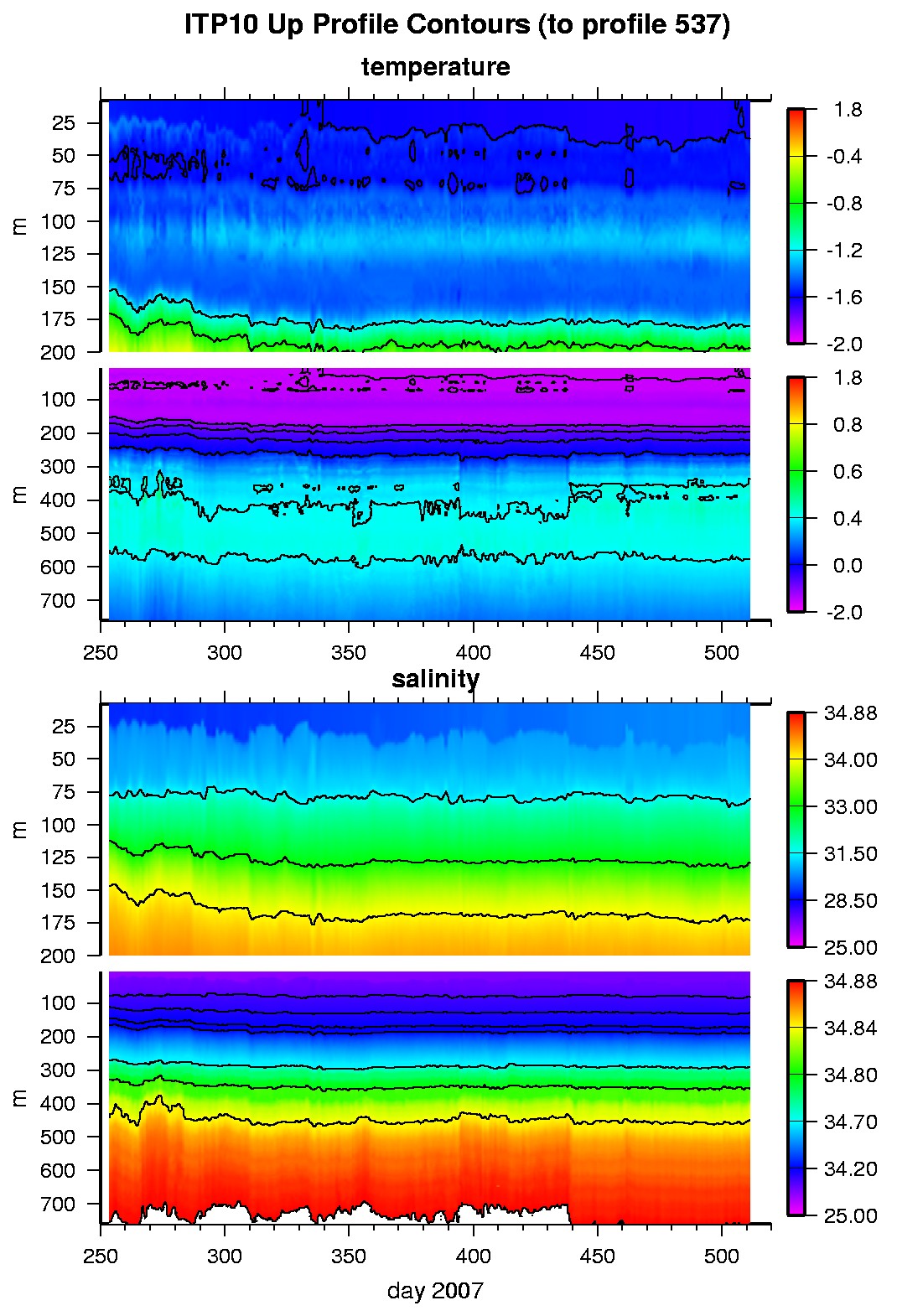

Plot of ITP T & S Contours

The raw GPS buoy location data are available in an ASCII file: itp10rawlocs.dat

Depth averaged profiler data files (with interpolated location) are available in two formats:

itp10grddata.tar.Z or itp10grddata.zip

ITP10 was deployed on a 2.9 m thick icefloe on 10 September 2007 at 84.993°N, 132.243 °W from the Russian icebreaker "Akademik Federov" as part of the European Union DAMOCLES Program. On the same icefloe, a US Army Cold Regions Research and Engineering Laboratory (CRREL) Ice Mass Balance Buoy (IMB 30466) was also installed. The ITP is operating on a typical sampling schedule of 2 one-way profiles between 7 and 760 m depth each day.
