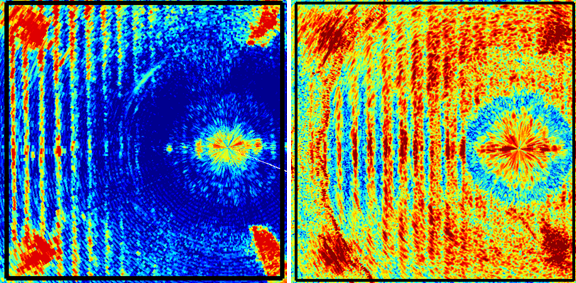

Figure 5.  Data from two prototype 881L tilted head rotary fanbeam sonars. The data in the right panel uses a wider beamwidth transducer to increase the ability to image under the sonar. The size of the imaged box is 2.5 m on a side. ()
